ソーラーカーポートの設置
Smart Carport
As the wave of new energy sweeps across the industry, carports are no longer merely structures providing shelter from the sun and rain; they represent an extension of architectural aesthetics, a starting point for energy management, and a key anchor for enhancing the value of high-end developments.

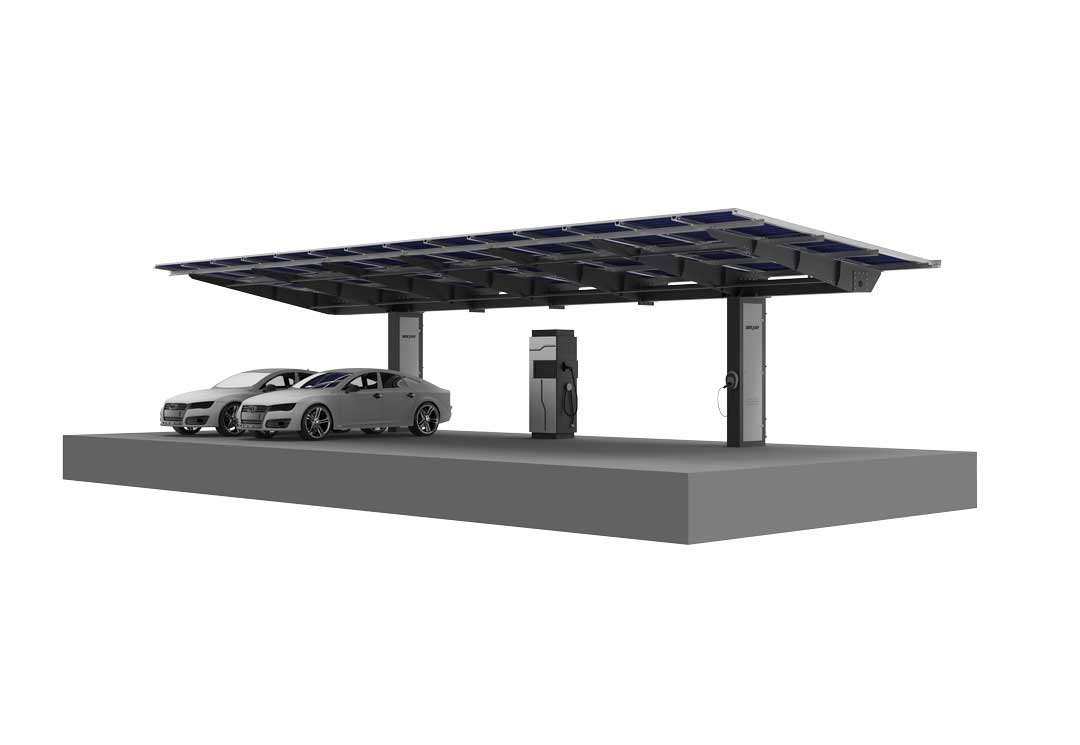

The Smart Carport is a forward-thinking carport system designed for large spans, featuring dedicated storage space for deep electrical integration. It seamlessly combines structural safety, smart charging, photovoltaic energy and refined aesthetics, offering a high-quality solution tailored to premium campuses and commercial landmarks, transforming every parking space into a functional energy station.
✓機能
- Cantilever Freedom: Setback columns, obstruction-free door opening, eliminates wasted space for widening parking spots.
- Large Span: Single bay comfortably fits four cars – fewer columns, more open space.
- idden Charging: Electrical equipment hidden inside columns, vandal-resistant design, seamlessly integrates fast charging – technology hidden within aesthetics.
- Refined Adaptability: Hot-dip galvanized texture and pure lines become a landmark feature of high-end venues.
- Green Energy Under Eaves: PV panels installed under purlins – no roof access, safer and more efficient.
- Durable Reliability: Hot-dip galvanized steel, standard service life >20 years, low maintenance, long-term value.
- Slope-Adaptable: Hinge design adapts to slopes up to 10° – no limitations.
- Soeasy has self-owned factory which makes OEM/ODM possible
✓パラメーター表
材料 | AL6005-T6 / Q355B |
Design Wind Load | < 45 m/s |
雪荷重 | 1 kN/m² |
モジュールの方向 | Transverse / Longitudinal |
Column Height | 2.5–2.8 m |
Max. Cantilever | 2.5 m |
Max. Span of Main Beam | 10 m |
Secondary Beam Length | 5 m |
傾斜の取り付け | 5° |
✓保証とサービス
保証
- 構造の信頼性：大雪と風荷重に耐えられるように設計・テストされた当社のシステムは、国際基準に準拠し、安全で安定したソリューションを提供します。
- 長期保証: 当社は材料と製造工程に対して10年間の保証を提供し、信頼性と安心をお約束します。
サービス
- 技術サポート：当社の専門チームは、多様なプロジェクト要件に対応したカスタムデザインソリューションを提供し、システムの性能を最適化します。
- インストールガイド：我们提供详细的安装手册和技术支持，以确保安装过程顺利高效。
- アフターサービス支援：当社の専門の顧客サポートチームは、いつでもご対応可能です。ご不明点やご質問にお答えし、製品性能やメンテナンスに関する問題に対し、迅速なサポートを提供し解決いたします。

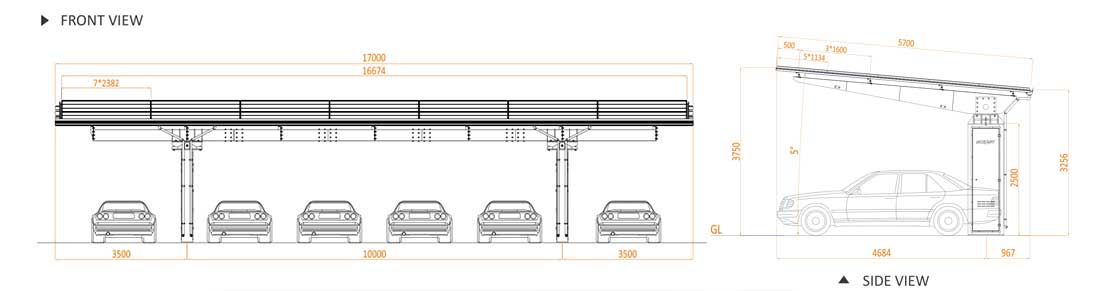

With a maximum column spacing of 10 metres, each single span can accommodate four vehicles. The columns feature a forward-thinking design, incorporating storage space for deep electrical integration that can be configured to suit specific requirements or used for general storage. The storage areas are designed to be vandal-proof, offering a secure and elegant solution with a spacious, sophisticated layout. This makes it the ideal choice for high-end business parks and commercial landmarks.
