太陽光発電システム用屋根取り付けシステム
One Key Hook
Simplify your solar installation and unlock the next level of efficiency. Designed exclusively for tile roofs, One Key Hook is a photovoltaic hook system built on a philosophy of minimalism. By requiring just one tool for the entire installation process, it eliminates constant tool swapping and boosts installation speed by 30%-50%. Three core innovations—One-Key Design, Snap-Fit Rail Connection, and a Concealed Conductive Clip—work together to deliver unmatched speed and a clean, modern aesthetic.
✓機能

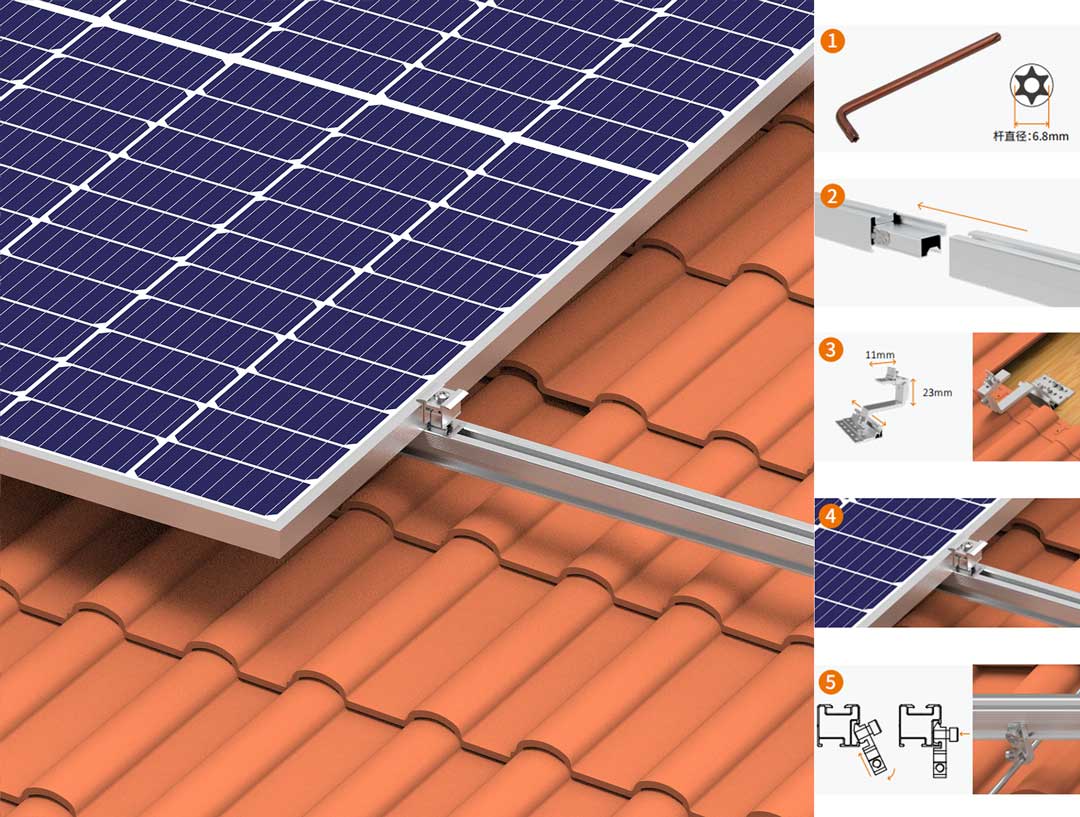

1.Install the entire system with a single tool
Break free from convention. Every component of One Key Hook is installed using just one tool, minimizing interruptions and creating a smoother, faster workflow.
2. Two Patents. Smarter Technology. Featuring a patented rail connector and grounding lug, One Key Hook sets a new benchmark for photovoltaic installation technology.
3. Triple Speed. Double the efficiency.
①One-Tool Installation: A seamless process from start to finish, boosting speed by 30%.

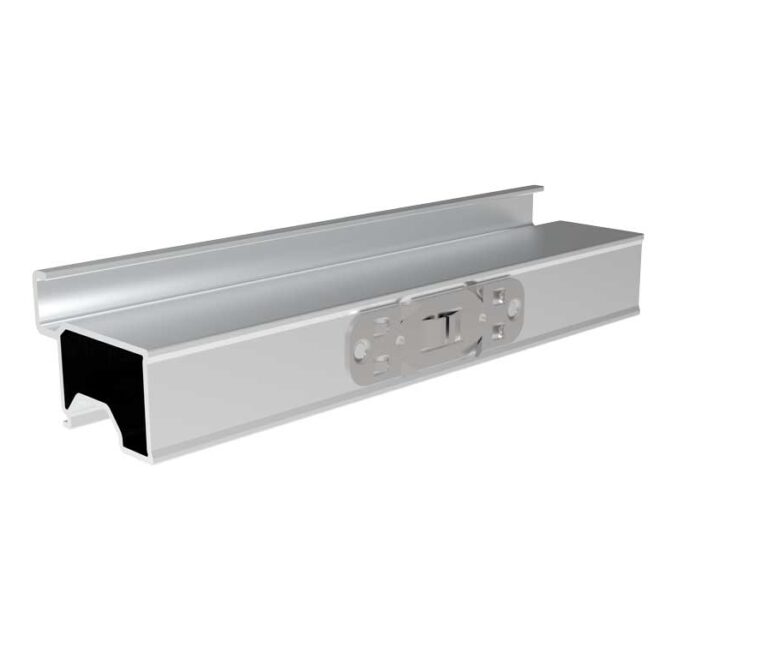

②Patented Snap-In Connector: No screws required—just push until it clicks. Rail connection completed in seconds.
③High Pre-Assembly: Factory pre-assembly cuts on-site workload in half.
⁕One Tool + Snap-In + Pre-Assembly = Triple Speed.
Engineered to deliver unprecedented installation efficiency.
4. Millimeter Precision. Suitable for any roof tile type.
① Adjustable Hooks: Fine-tune forward/backward, left/right, and up/down. Easily navigate complex roof conditions and obstacles with precision and flexibility.
② Broad Module Compatibility: EU-series adjustable mid and end clamps accommodate mainstream module thicknesses from 30–35 mm. Versatility that outperforms the competition.
5. Invisible Integration. Sophisticated Design
① Patented Concealed Grounding System: The grounding lug snaps into any point along the rail channel, hiding the grounding wire neatly beneath the module array. Safety meets elegance.
② End Cap Design: Provides a clean finish, integrated protection, and dust prevention. Every detail reflects precision craftsmanship.
✓パラメーター表
アプリケーション | Tile Roof |
材料 | AL 6005-T6/SUS304 |
表面処理 | 平均陽極酸化コーティングの厚さ 10μm |
パネルの種類 | フレーム付き&フレームなし |
風荷重 | ≤45m/s |
雪荷重 | 1.5KN/m² |
パネルの方向 | Portrait |
傾斜角度 | 0°~45° |
地震荷重 | 横方向地震係数:Kp=1; 地盤係数:Z=1; 使用係数: I=1 |
基準 | JIS C 8955 : 2017；AS/NZS 1170; DIN1055; ASCE/SEI 7-05; 国際建築基準:IBC2009 |
保証期間 | 10年間の品質保証、 25年間の保証期間 |
✓保証とサービス
サービス
- 技術サポート:当社のチームは、プロジェクトの特定の要件に対応するため、事前相談、カスタマイズされた設計ソリューション、および設置指導を提供しています。
- 迅速な配送:効率的なサプライチェーン管理により、迅速な生産と納品が実現され、プロジェクトが計画通りに進捗するよう確保されます。
- カスタマイズ可能当社はカスタマイズされたソリューションを提供しており、独自の屋根構造向けに設計されたカスタムインストールコンポーネントを含みます。
- アフターサービス支援:故障のトラブルシューティング、部品の交換、および技術的な相談に対応する専門のサポートを提供し、システムのパフォーマンスがスムーズに機能するように確保します。
コンポーネント
FAQ
What makes The One Key Hook different from traditional solar hooks?
Unlike traditional systems that require multiple tools and complex steps, The One Key Hook integrates:
- One-tool installation
- Patented snap-fit rail connection
- Concealed conductive clip for grounding
These innovations reduce labor, save time, and deliver a cleaner aesthetic.
How does the one-tool installation work?
Every component of The One Key Hook system is designed to be installed using a single tool, eliminating the need for constant tool changes and allowing for a smoother, faster workflow.
What is the snap-fit rail connection?
It’s a patented mechanism that allows rails to be connected without screws—simply push until it clicks. This reduces installation time and ensures a secure, reliable connection.
Is The Key suitable for both residential and commercial projects?
Yes. Its fast installation, precision adjustability, and clean aesthetics make it an excellent choice for both residential and commercial clay tile roof solar installations.
Where can I buy The Key solar roof hook system?
