Farm: Demeter AGRO

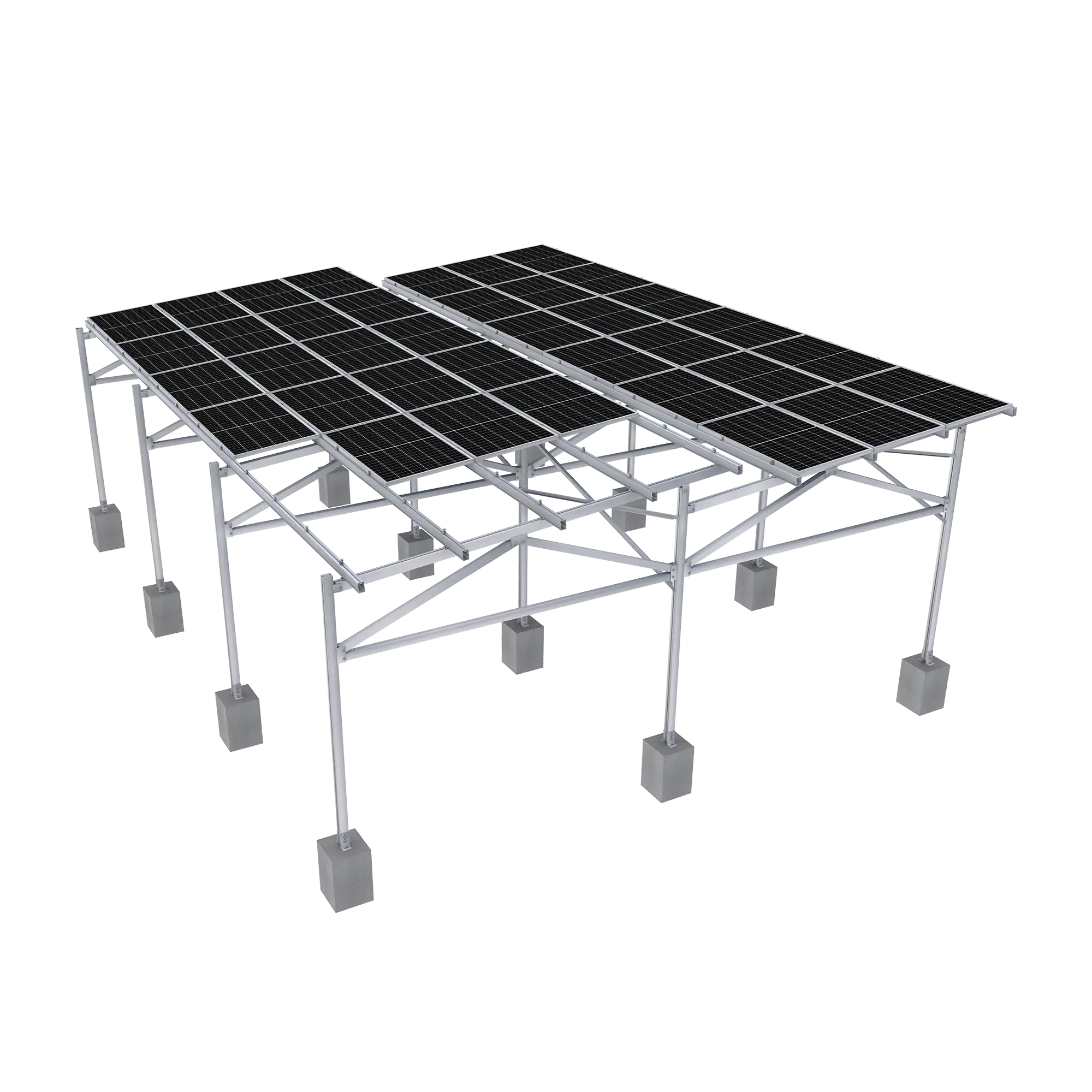

The Demeter AGRO is a kind of ground-mounted solar system designed specifically for agricultural applications. Built to thrive on open and flat farmland, this innovative solution seamlessly integrates solar energy production with agricultural activities, maximizing land-use efficiency and sustainability.

The Demeter AGRO is more than just a solar mounting system—it’s a forward-thinking solution for modern farming. By integrating renewable energy with agriculture, it empowers farmers to embrace sustainability while enhancing their operational efficiency. Choose Demeter AGRO and take a step toward a greener, more productive future.

Increased Productivity: By combining solar energy generation with agriculture, the Demeter AGRO helps farmers diversify their income streams and improve overall land productivity.

Environmental Impact: The system supports sustainable farming practices and reduces carbon footprints by promoting clean energy production.

Durability and Reliability: Built to withstand harsh outdoor conditions, the Demeter AGRO is a long-lasting solution that ensures consistent performance year after year.

Optimal Height and Angle: The Demeter AGRO system is elevated 2-3 meters above the ground, with panels set at a 30-degree angle. This design ensures minimal disruption to farming operations while maximizing solar energy capture.

High-Clearance Design: The elevated structure provides ample space for farming machinery and crop growth underneath, allowing for dual land use without compromise.

Crop Protection: By offering shade and shelter, the Demeter AGRO system protects crops from extreme weather conditions, such as severe storms or excessive sunlight, helping to stabilize crop yields.

Sustainable Energy Production: This system enables farmers to generate clean, renewable energy while maintaining agricultural productivity, reducing reliance on non-renewable energy sources.

Land-Use Efficiency: The Demeter AGRO eliminates the need to choose between solar farms and agriculture. Instead, it allows both to coexist harmoniously, doubling the utility of your land.

材料

Main body:Zinc magnesium aluminum

 Small parts:Stainless steel+Aluminium

方向

横向き/縦向き

Recommended  Ground Clearance

2m-3.5m

最大風速

<70m/s

雪荷重の最大値

<1.5KN/㎡

基礎

Drive piles into soil

埋め込み式地ねじ

コンクリート基礎

構造基準

JS 8955:2017;AS-NZS 1170;

 DIN 1055; ASCE 7-05

  • 構造の信頼性:大雪と風荷重に耐えられるように設計・テストされた当社のシステムは、国際基準に準拠し、安全で安定したソリューションを提供します。
  • 長期保証: 当社は材料と製造工程に対して10年間の保証を提供し、信頼性と安心をお約束します。
  • 技術サポート:当社の専門チームは、多様なプロジェクト要件に対応したカスタムデザインソリューションを提供し、システムの性能を最適化します。
  • インストールガイド:我们提供详细的安装手册和技术支持,以确保安装过程顺利高效。
  • アフターサービス支援:当社の専門の顧客サポートチームは、いつでもご対応可能です。ご不明点やご質問にお答えし、製品性能やメンテナンスに関する問題に対し、迅速なサポートを提供し解決いたします。
Shape

Agricultrural Fram Mount System

SOEASY Agricultrural Ground Mount System, Farm: Demeter AGRO, with professional and reasonable structural design, has strong mechanical properties such as wind pressure resistance, snow pressure resistance, vibration resistance, corrosion resistance, etc., which ensures normal operation in various harsh environments such as wind, sand, rain, snow, earthquake, etc., and requires a service life of more than 25 years.

FAQ

Yes, however, the recommended ground clearance and span is 3.5 meters. If this standard configuration does not meet your needs, we offer customized designs tailored to local snow and wind conditions.

It allows farmers to generate renewable energy while preserving agricultural land use, potentially creating additional revenue streams.

現在進行中のプロジェクトの詳細がある場合は、このオンラインお問い合わせフォームにご記入ください。後日、ご連絡いたします。 オンライン問い合わせフォーム できるだけ早くご返信いたします

詳細なインストールガイド、図面、および専任のカスタマーサポートを提供し、スムーズな体験を実現します。産業プロジェクト向けには構造計算書もご用意しています。

この製品の設計寿命は25~30年ですが、SOEASYが設計・製造した製品は材料および製造工程において欠陥がないことを保証し、保証期間は10年間です。

コンポーネント

横梁
端部クランプセット
斜め支え
L foot Base Seat
支柱
Pillar
中間クランプセット
軌道
