In photovoltaic (solar) projects, developers, investors, and landowners often face a major challenge: the scarcity and high cost of land resources. Therefore, maximizing land use is critical for controlling project costs and increasing investment returns. The Single post ground mounting systems offer an efficient solution for optimizing land use with its unique design.

1. What is a Single Post Ground Mounting System?

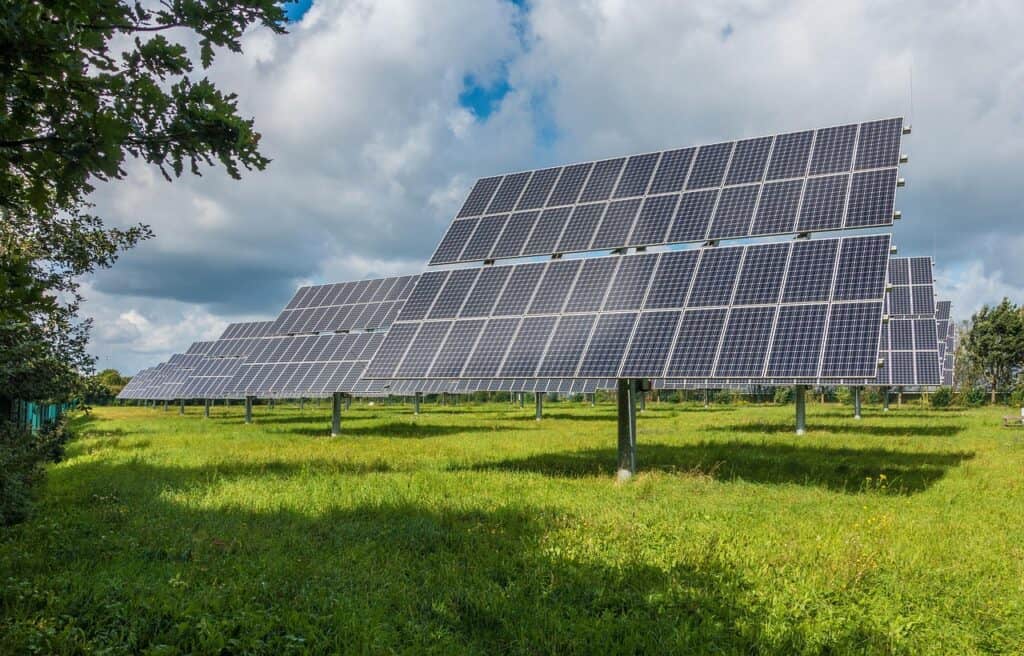

Conventional solar panel mounting systems use two vertical posts to create a sturdy ‘gate-like’ structure, known as the dual-post system. In contrast, the single post ground mounting bracket utilizes a single vertical post to support multiple rows of photovoltaic modules. These posts are arranged longitudinally, with rails and connectors linking the module arrays, forming a continuous and stable support structure.

2. How Does the Single Post Ground Mounting System Maximize Land Use?

① Reduced Physical Footprint, More Usable Ground Space

The single post system halves the number of posts compared to traditional dual-post systems, significantly reducing ground obstacles and excavation areas. This reduction directly benefits two core areas:

• Less Environmental Disruption: Less disturbance to native vegetation and soil structure, making it more environmentally friendly.
• Optimized Layouts: With fewer posts, it’s possible to install more solar modules on the same land, increasing the total installed capacity.

② The Ideal Solution for Agrivoltaics

The agrivoltaic system (solar power generation combined with farming) exemplifies efficient land use. However, dense post networks often hinder large agricultural machinery. The single post system addresses this issue:

• Wide Machinery Pathways: The longitudinal arrangement of posts creates wide, unobstructed lanes for tractors and harvesters, enabling mechanized farming.
• Balanced Sunlight Distribution: The simpler structure reduces shading, ensuring balanced sunlight for crops beneath the panels.

③ Better Adaptation to Complex Terrain

The single post system excels in challenging terrains, such as slopes and sandy soils, which can be costly and disruptive with traditional systems:

• Terrain Flexibility: Independent foundations allow each post to be individually adjusted for height, following the land’s natural contours.
• Stable Foundations: Spiral ground screws ensure strong pull-out and compression resistance, even in soft or sandy soils, maintaining structural integrity.

④ Optimized Array Layout for Increased Energy Output

In photovoltaic station design, shading can significantly impact energy production. The single post system’s thinner design reduces its own shading area, allowing rows of modules to be placed closer together without sacrificing sunlight exposure.

This results in more modules installed on the same land area, increasing land utilization and overall energy generation capacity.

3. Cost Efficiency of Single Post Ground Mounting Systems

Economic viability is a key factor in photovoltaic project decisions. The single post ground mounting system offers substantial advantages in cost control and economic returns.

• Reduced Initial Investment: The simpler structure reduces the number of posts by 50%, cutting steel consumption by 20%-30%. This provides a clear cost advantage, especially when steel prices fluctuate. Additionally, the system’s quick-installation foundations reduce labor and equipment costs.
• Streamlined Logistics & Installation: Fewer parts and standardized design reduce packaging, transport costs, and installation time. The process is efficient and simple, cutting down on professional skill requirements and project timelines.

These benefits result in a combination of lower initial investment 及 higher energy output, providing a competitive levelized cost of electricity (LCOE) and higher internal rates of return (IRR) for investors, making photovoltaic projects more attractive economically.

4. Sustainability and Future Trends of Single Post Ground Mounting Systems

Beyond economics, the single post system is an environmentally sustainable solution that aligns with global sustainable development goals.

• Environmental Protection: The system’s low-impact design minimizes disturbance to the natural landscape, protecting local ecosystems and promoting biodiversity. This makes it an ideal solution for sustainable land use.
• Industry Trends: As the photovoltaic industry moves toward more diversified applications, the single post system’s adaptability and cost-effectiveness make it ideal for large-scale ground-mounted stations, agrivoltaic projects, and commercial applications. As the global market places increasing pressure on cost control, the system’s advantages will become even more prominent.

SOEASY Solar – Making Clean Energy Deployment, So Easy!

If you’re planning a photovoltaic project and want to maximize energy generation on limited land while balancing ecological and agricultural needs, SOEASY Solar TerraSP single post ground mounting system is the ideal solution.

Our TerraSP single post ground mounting system is a high-performance, cost-effective solution designed for large photovoltaic stations. The system is adaptable for flat land, slopes, and agrivoltaic applications.

Key Benefits of the TerraSP System:

• Integrated pile-post design for fast installation and stability.
• Highly modular and customizable based on your needs.
• Reduces construction and installation costs effectively.
• Guarantees stable performance in challenging environments.

For detailed technical specifications, project case studies, or customized solutions, please contact our sales team. Let us help you create a more efficient and cost-effective solar energy project.
