High Voltage Series (HV)

NSTFW 16K-HV

NSTFW 16K-HV is an energy storage unit designed for residential or commercial

grid applications with short-term backup capability.

Erergy Storage Battery

Product details

Introduction：

Key Features and Benefits:

1. Reliable

Lithium lron Phosphate (LFP) Battery, safety, high density, small self-discharge, no memory effect, etc. Equipped with protective cut-off switch.

2. Flexible

Modular design, single set can expand to 14units (225.08kwh capacity). Multiple battery units can be stacked, small footprint, low economic cost.

3. Smart

BCU & BMU total secondaryBMS intelligent management, voltage, current, temperature collection, intelligent adjustment of charge and discharge power. Equipped WlFl module, can monitor remotely.

Fan cooling system, with cooling shell, effectively reduce the battery heat.

4. Cooperation

Supports customization, OEM/ODM.

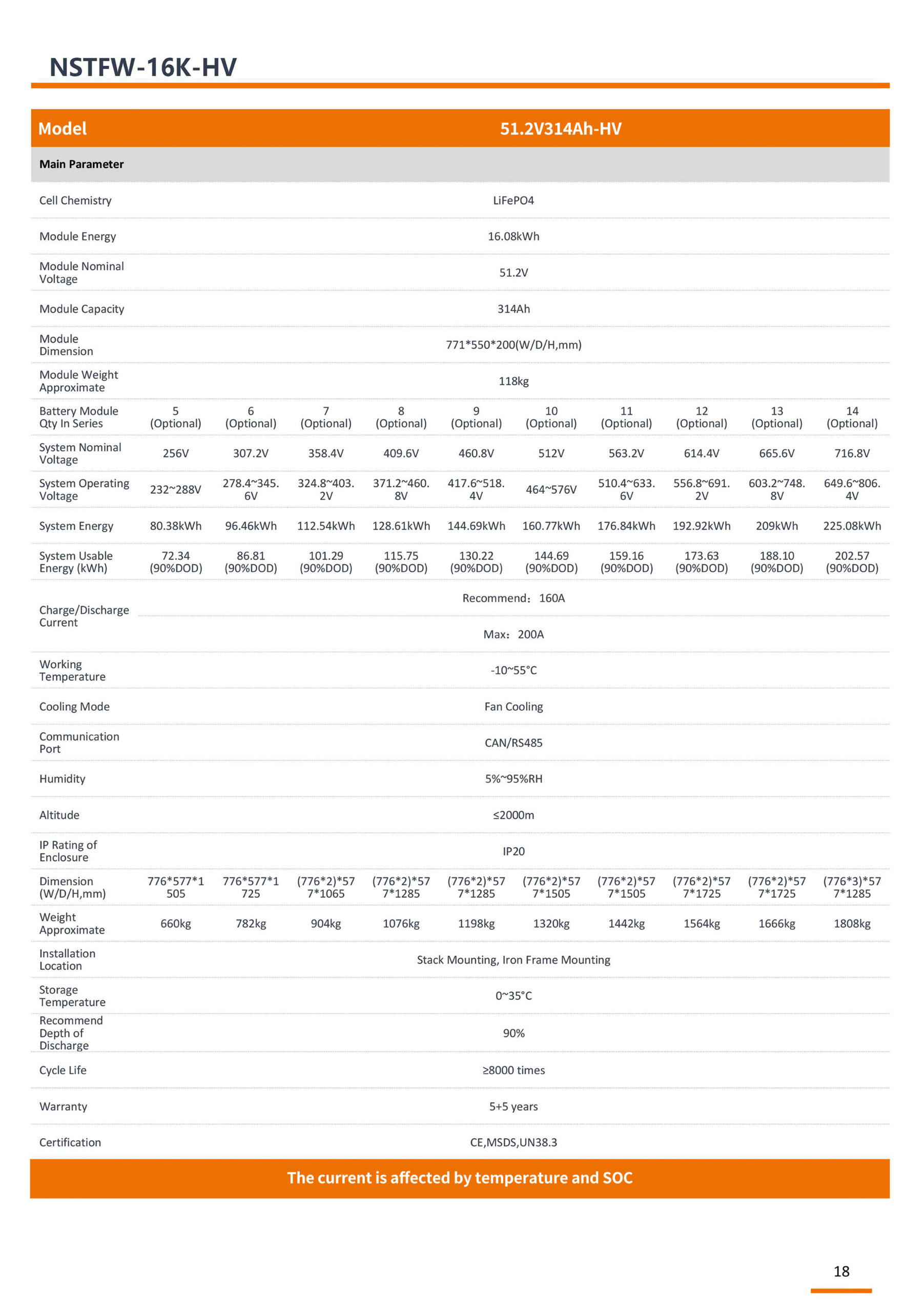

NSTFW 16K-HV high voltage lithium battery energy storage system, consisting of 5- 14 battery modules (51.2V314Ah) and a BCU (Battery Control Unit) in series, with an operating voltage range of 232V-806.4V, is used for household / commercial energy storage applications, working with a high voltage inverter for energy storage purposes.

NSTFW 16K-HV has a built-in BMS (battery management system, including the main BMS in BCU and the slave BMS in battery module), which can manage and monitor battery information, including voltage, current and temperature. In addition, BMS can balance battery charging to prolong service life. BMS has over discharge, over charge, over-current, high / low temperature and other protection functions. The system can automatically manage the charge state, discharge state and balance state.Each battery module is equipped with a cooling fan, plus a porous sheet metal design, which effectively alleviating the problem of working heat.

NSTFW 16K-HV built-in wireless WIFI module, which can realize remote monitoring and debugging by mobile phone. External touch screen, status indicator and power indicator can also clearly observe the status of the energy storage system.

NSTFW 16K-HV have soft-start circuit inside so it can support inverters without soft start function.
