Floating: Aqua FPV

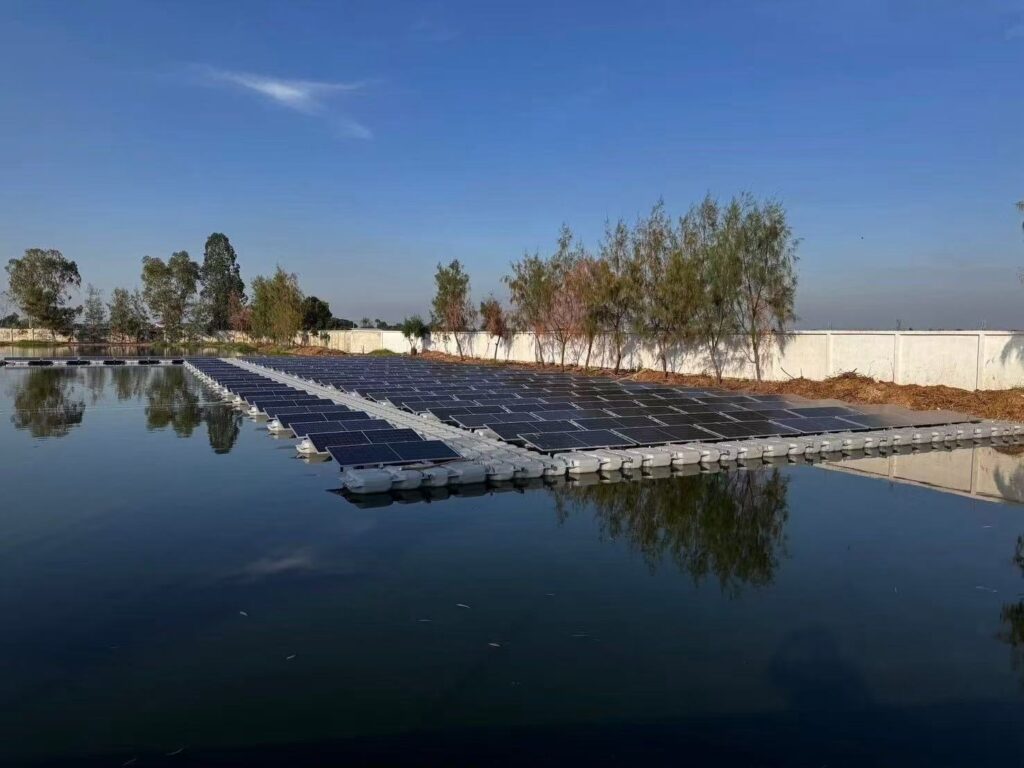

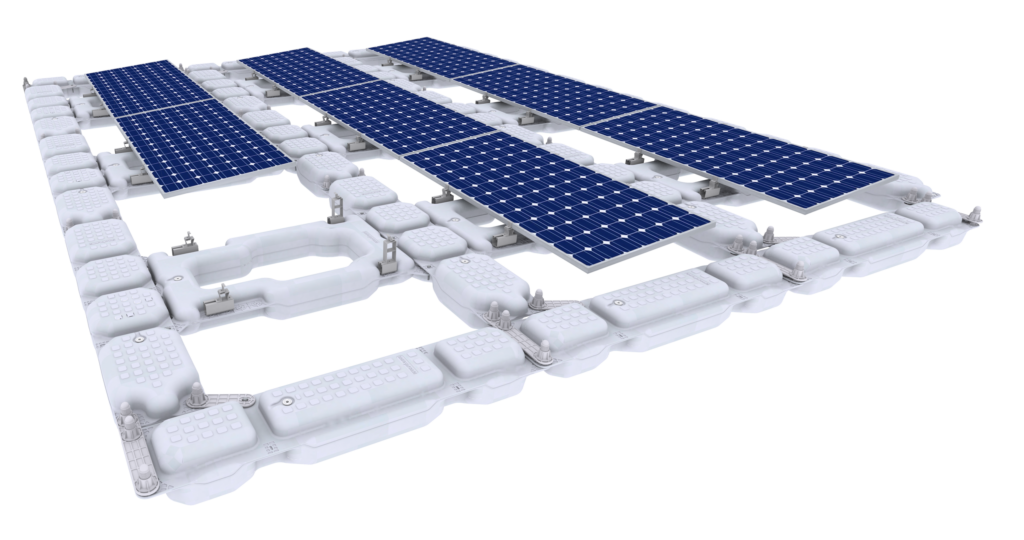

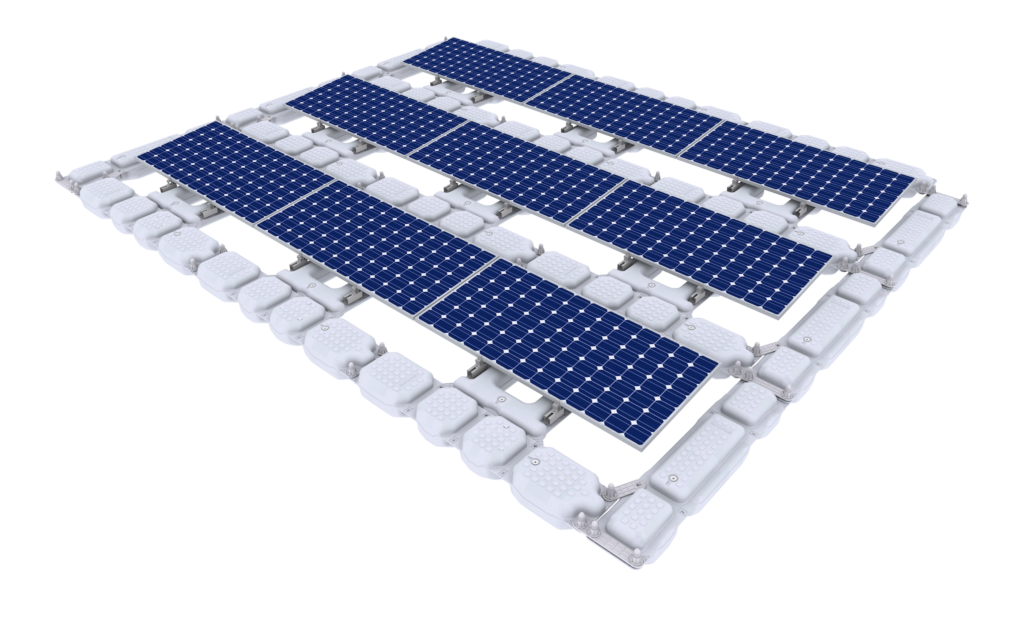

The Floating Aqua FPV is an innovative solar power generation system designed for installation on water surfaces such as coal subsidence areas, ponds, reservoirs, scenic lakes, sewage ponds, and dams. This cutting-edge solution not only addresses the land-use challenges of traditional ground-mounted solar systems but also significantly enhances return on investment (ROI). With its versatile design and customizable solutions, the Floating Aqua FPV is the ideal choice for maximizing energy production while minimizing environmental impact.
Features
- Versatile Application on Water Surfaces:
The system is specifically engineered for installation on various water bodies, including industrial ponds, reservoirs, and lakes. By utilizing otherwise unused water surfaces, it eliminates the need for large land areas, making it a sustainable and space-efficient solution. - Efficient Installation and Cost Savings:
The system’s specialized design streamlines the installation process, significantly reducing labor and construction costs. Its modular structure ensures quick deployment, allowing projects to be completed faster and more efficiently. - Enhanced ROI and Environmental Benefits:
By leveraging water surfaces for solar energy generation, the Floating Aqua FPV not only increases energy output but also reduces water evaporation and algae growth, contributing to environmental conservation.
Parameter table
Application | Reservoir/lake/inland sea etc. |
Tilt angle | 5°、10°、15° / customizable |
Wind load | 45 m/s |
Snow load | 900 N/m² |
Depth of water | Not less than 1m |
Solar panel | Framed or frameless |
Array of solar panel | Landscape/single/double rows |
Design standard | JIS C8955: 2017; AS/NZS 1170; DIN 1055; International |
Building Code | IBC 2009 |
Floating body material | HDPE |

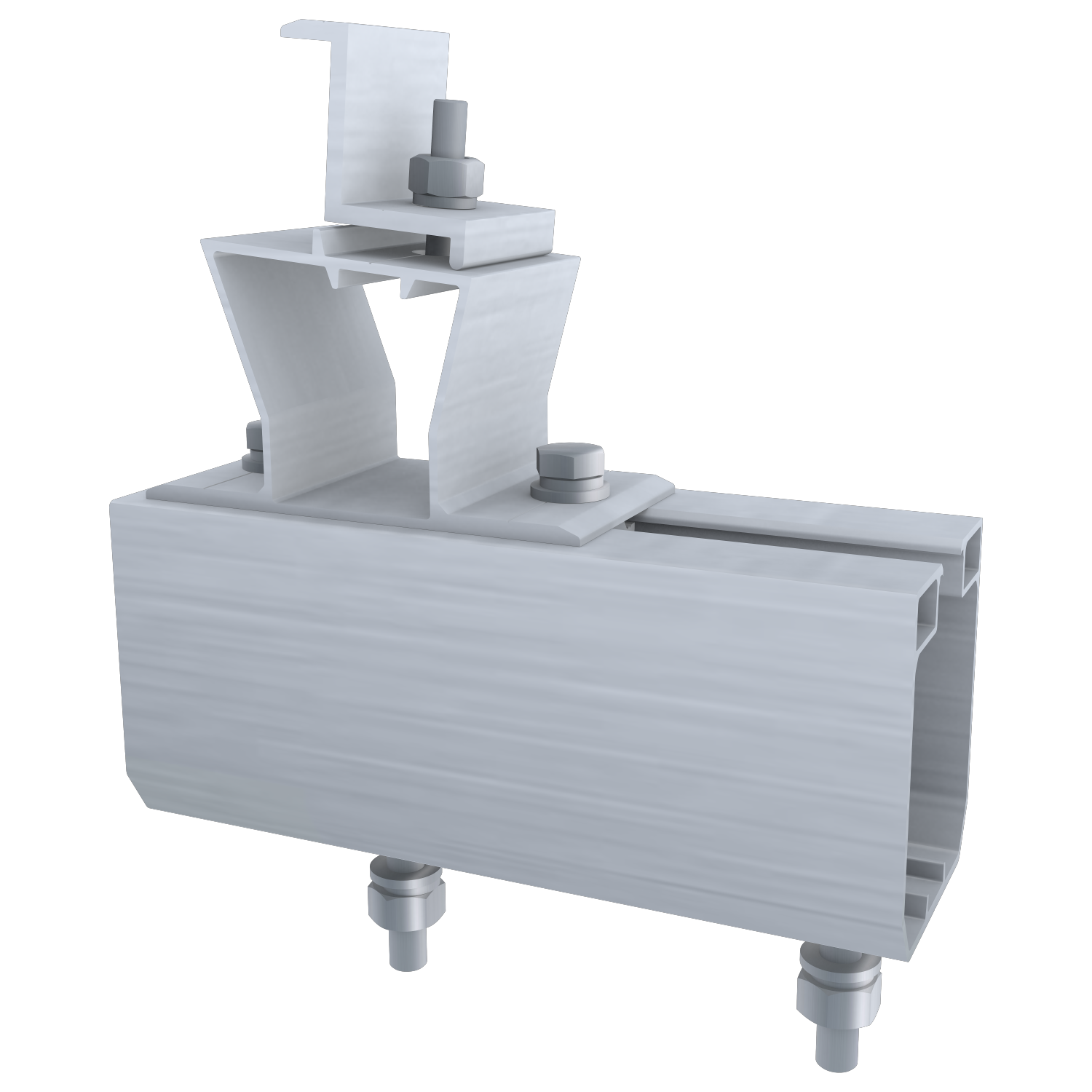

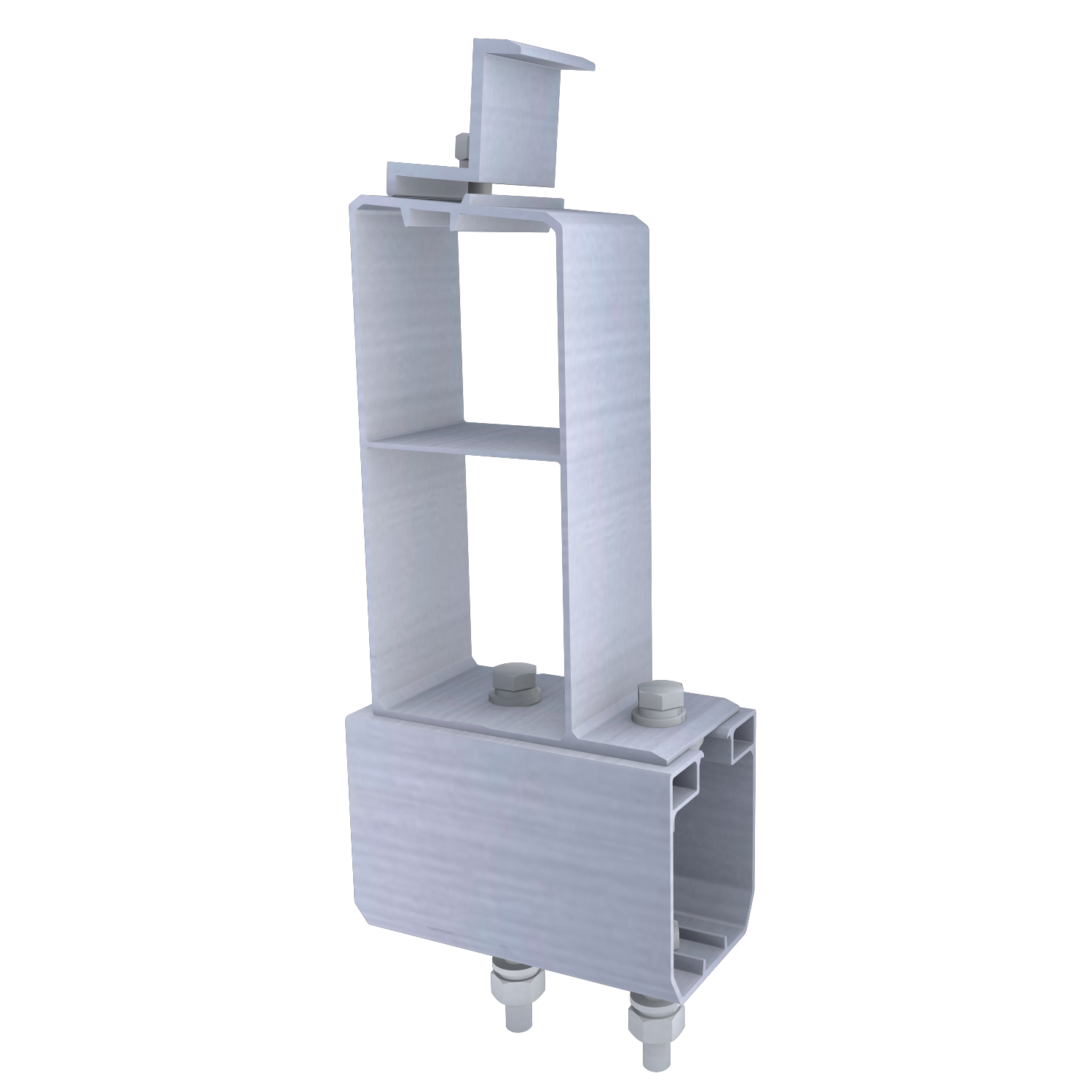

Mounting material | AL6005-T5/Q235B |

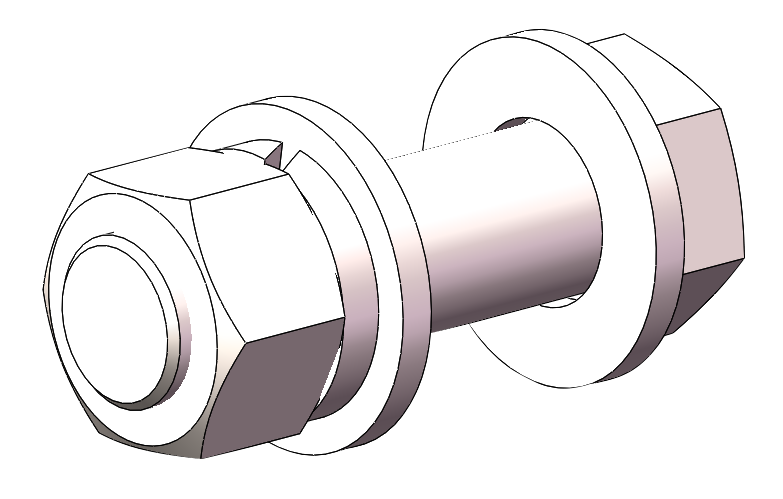

Fastener material | SUS304 |

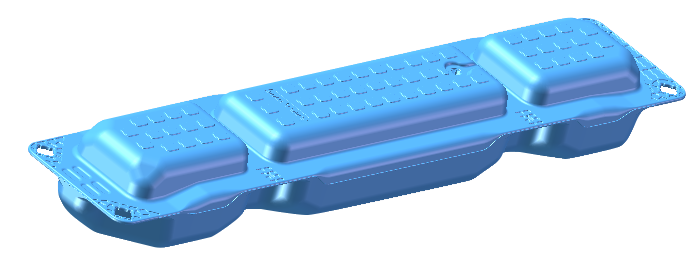

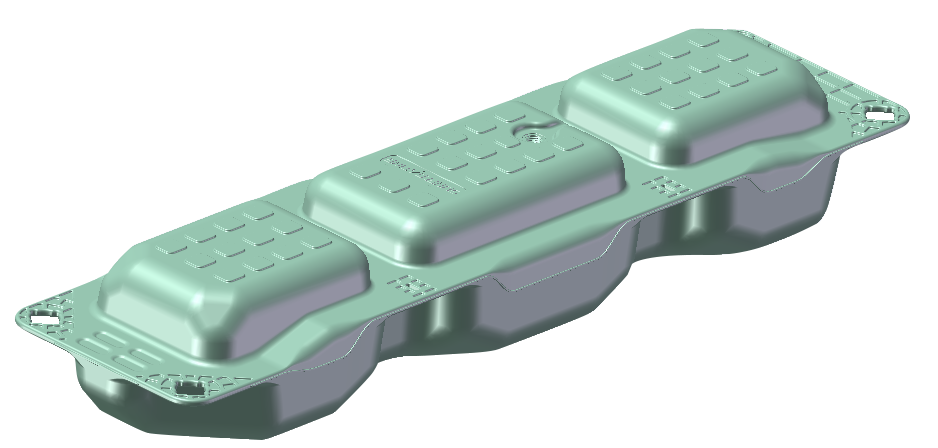

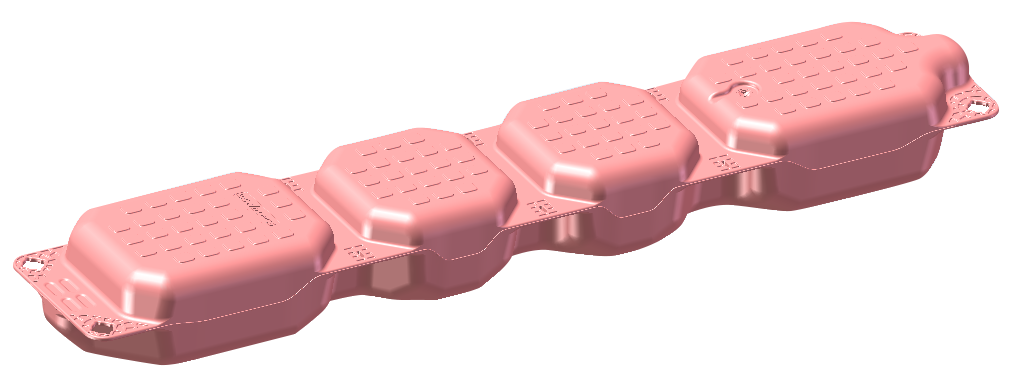

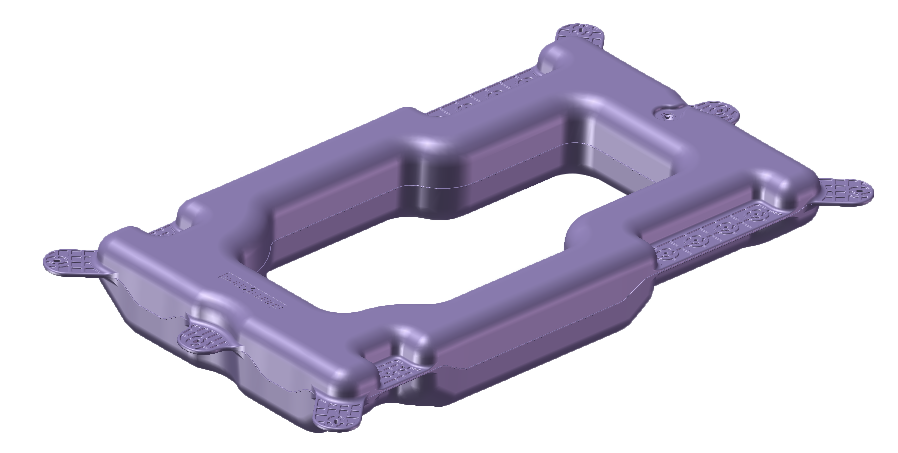

Buoyant force | Portrait Walkway Floater B 159kg/mm²; Portrait Walkway Floater A 163kg/mm²; Landscape Walkway Floater 182kg/mm²; Main Floater 120kg/mm² |
Warranty period | 10-year quality warranty / 25-year aging resistance |
Guarantees & Service
- Space Efficiency: Utilizes water surfaces, freeing up valuable land for other uses.
- Customization: Tailored solutions to meet specific project requirements.
- Cost-Effective: Reduces installation time and labor costs.
- Sustainability: Promotes clean energy while protecting water resources.
Soalr Floating Mount System
Designed for durability and efficiency, the SOEASY Single Post Ground Mount offers a stable and cost-effective solution for solar installations. Its streamlined structure ensures quick installation, strong wind resistance, and adaptability to various terrains, making it an ideal choice for large-scale solar projects.
