Flat Roof: Maxtrix ELITE

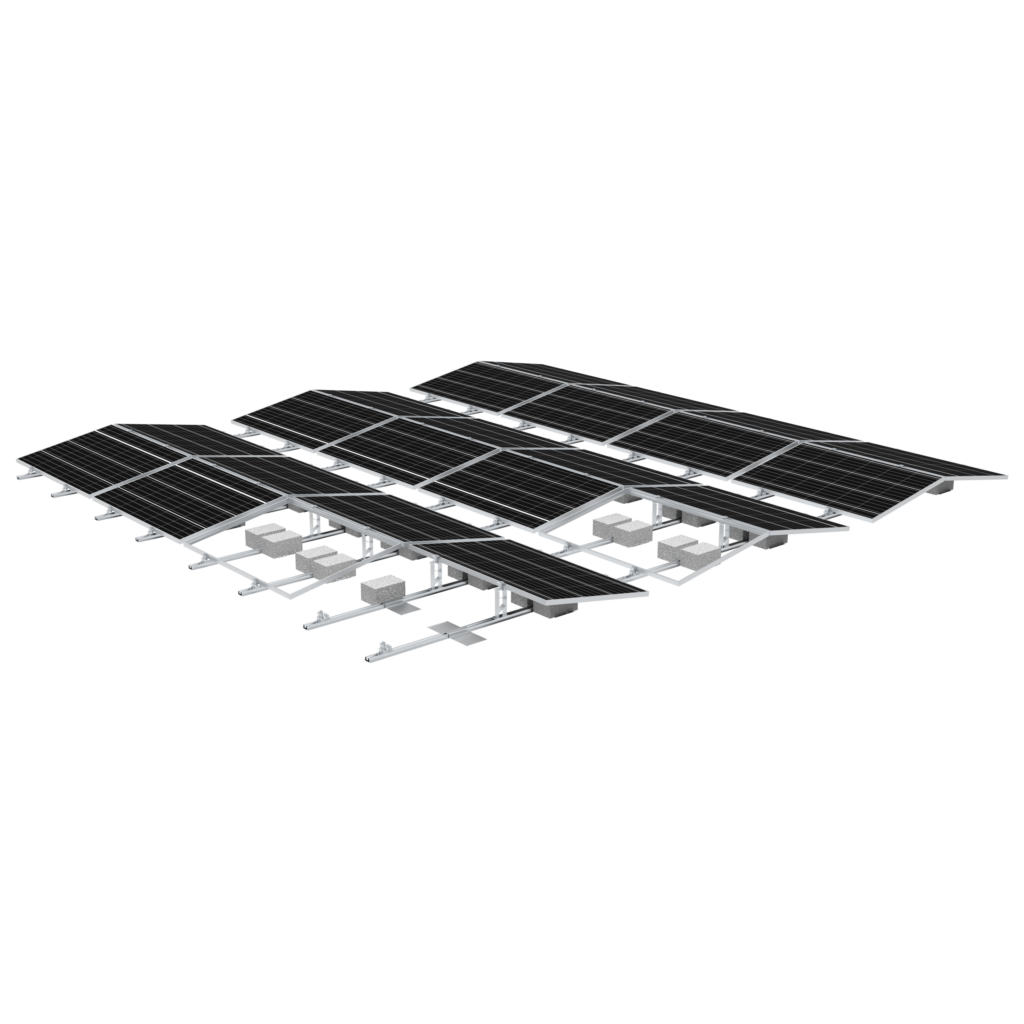

The Flat Roof Matrix ELITE, designed by SOEASY, is a high-performance ballasted solar mounting system optimized for flat roofs with strict waterproofing requirements and limited load-bearing capacity. Its aerodynamic design ensures enhanced stability, while the pre-assembled bracket system allows for fast and hassle-free installation without roof penetration.
Built with durable aluminum and stainless steel, the Matrix ELITE provides long-term reliability and corrosion resistance. The system supports adjustable tilt angles to maximize solar efficiency, making it an ideal choice for commercial, industrial, and large-scale residential projects.
With its lightweight structure and cost-effective design, the Flat Roof Matrix ELITE guarantees efficient energy generation while protecting your roof and reducing installation costs.
Features
Fully Pre-Assembled & Patented Design:
The system features pre-assembled brackets and patented fixed components, streamlining installation and significantly reducing on-site labor and construction time. This plug-and-play design ensures quick deployment and seamless project execution.
Customizable & Roof-Friendly Design:

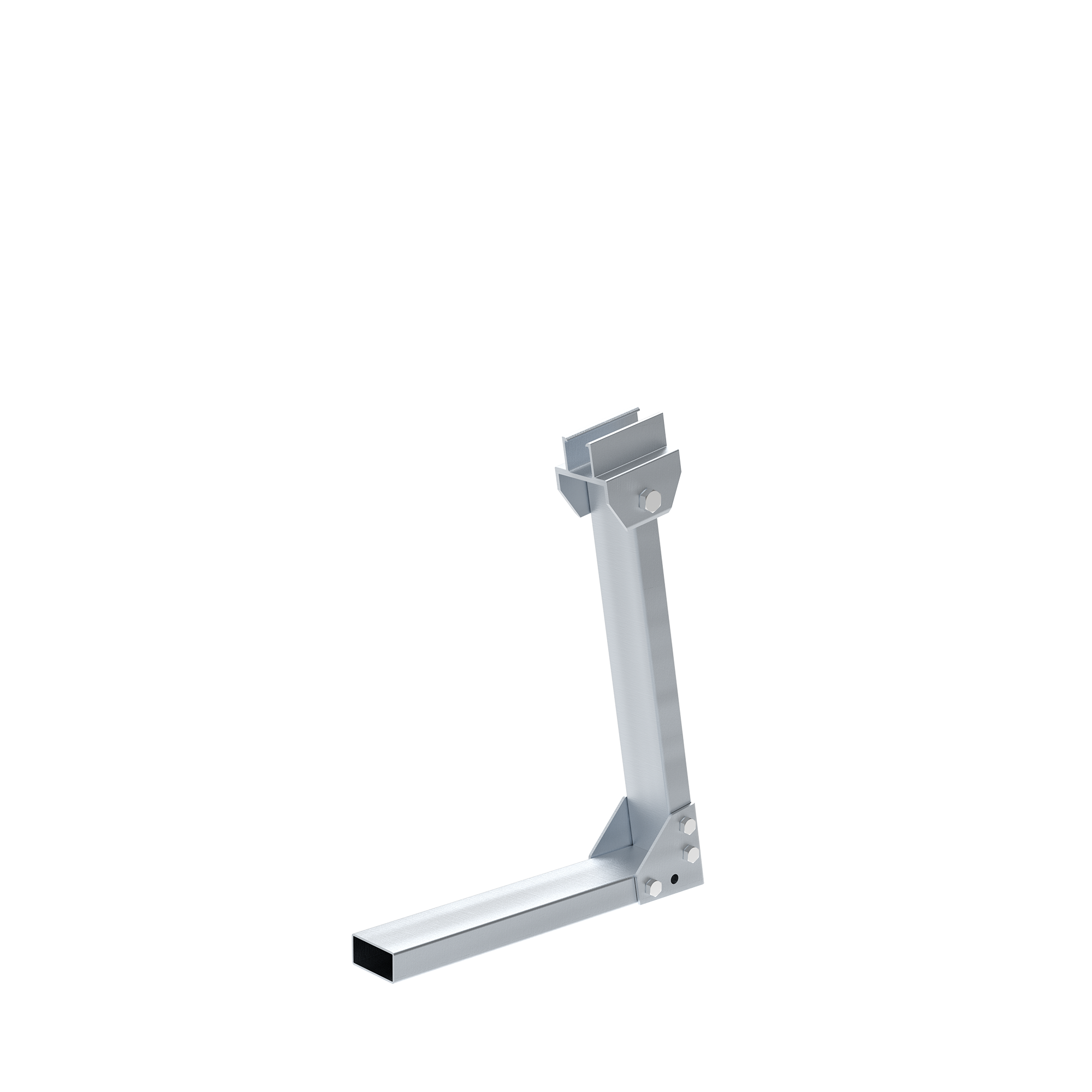

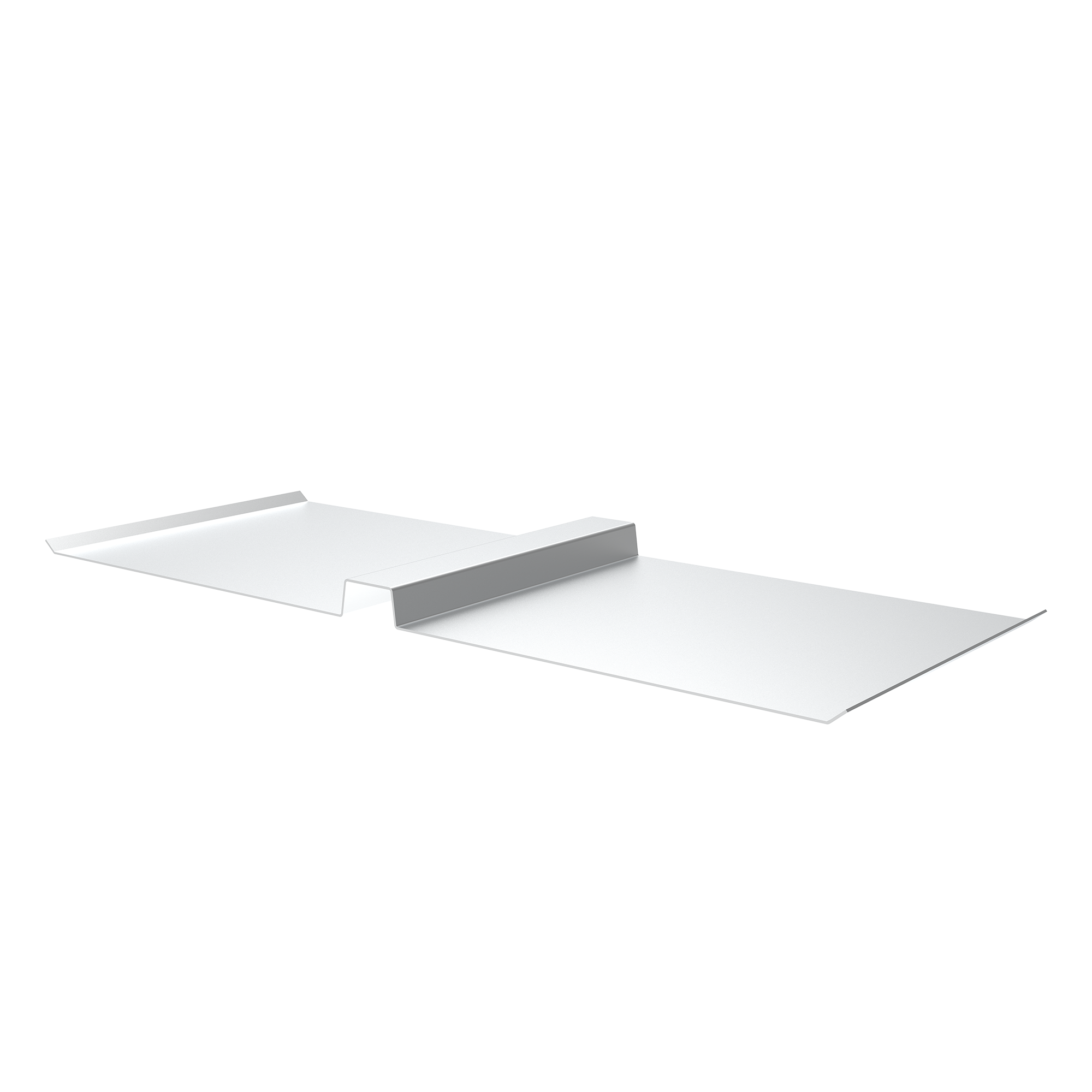

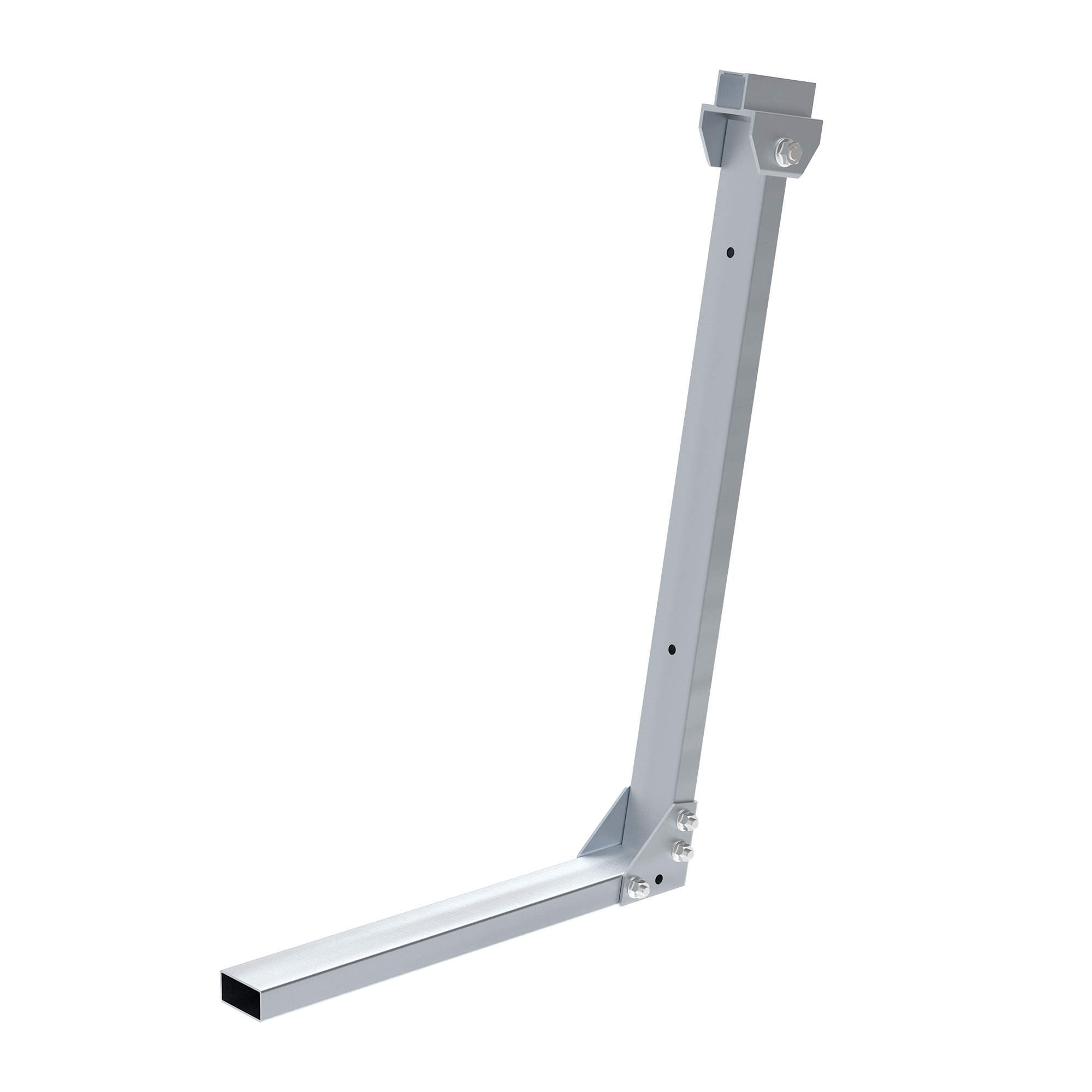

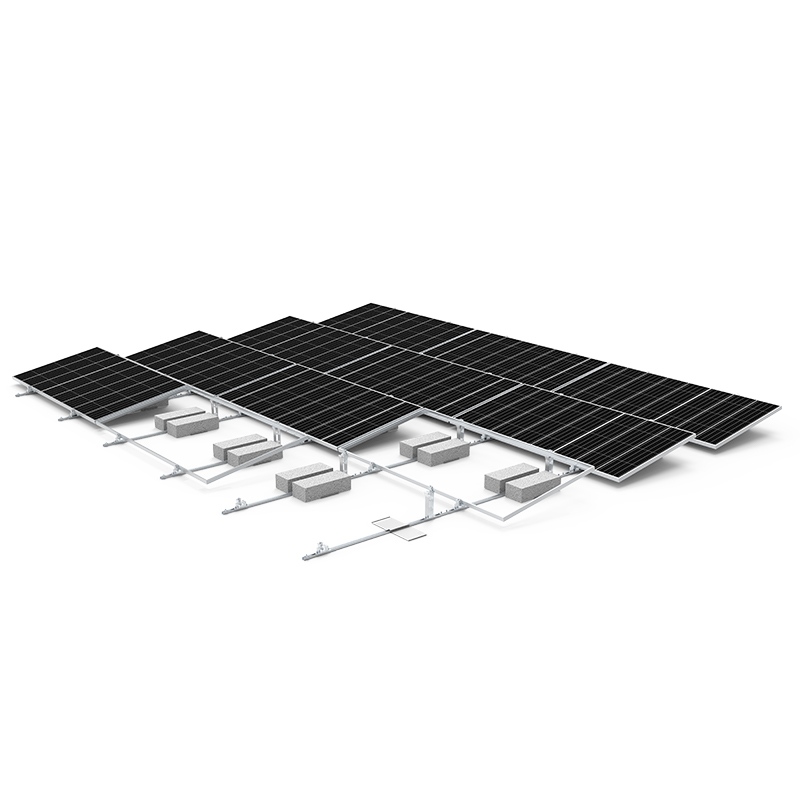

The Flat Roof Matrix ELITE offers a fully customizable solution tailored to meet specific project needs, saving valuable time in design and construction. Its ballast-based fixation system uses concrete or other weights to secure the front and rear brackets, eliminating the need for roof penetrations. This non-invasive approach preserves the roof’s original waterproof structure, ensuring long-term durability and protection.
Optimized for Large Panels in Landscape Layout:
Specifically designed to support large solar panels in a landscape orientation, the system adheres to module manufacturers’ installation guidelines. By securing panels at nearly the 1/4 point of the long side, the risk of panel deformation and sagging is minimized, ensuring optimal performance and extended panel lifespan.
Enhanced Stability with Integrated Structure:

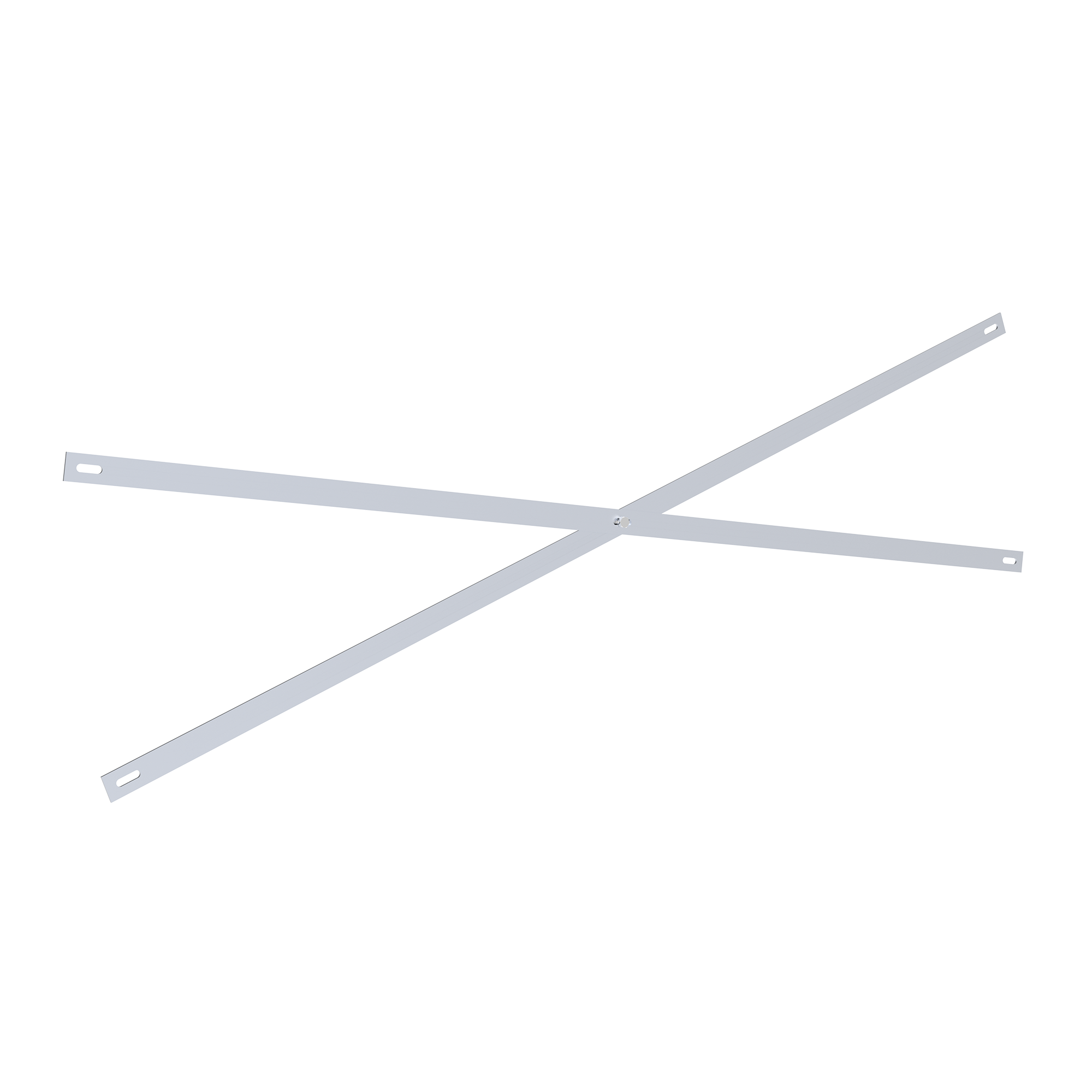

The system’s innovative design connects the entire layout using leg joints and crossed diagonal bars, transforming individual panels into a unified, robust structure. This interconnected framework enhances wind resistance, improves overall stability, and ensures the system can withstand extreme weather conditions.
Parameter table
Application | Flat Roof |
Component Material | AL 6005-T6/SUS304 |
Surface Treatment | Average Anodizing Coating Thickness 10μm |
Panel Type | Framed & Frameless |
Wind Load | ≤45m/s |
Snow Load | 1.5KN/m² |
Panel Orientation | Landscape |
Installation Angle | 0°~45° |
Seismic Load | Lateral Seismic Factor: Kp=1; Seismic Coefficient: Z=1; Use Coefficient: I=1 |
Standards | JIS C 8955 : 2017；AS/NZS 1170; DIN1055; ASCE/SEI 7-05; International Building Code：IBC 2009 |
Warranty | 10 Years Quality Warranty, 25 Years Life Span Warranty |
Guarantees & Service
Time & Cost Efficiency: Pre-assembled components and a simple installation process reduce labor and construction costs, while the customizable design accelerates project timelines.
Roof Protection: The non-penetrative ballast system safeguards the roof’s waterproofing, eliminating the risk of leaks or damage.
Superior Performance: Engineered for large panels, the system minimizes the risk of deformation and maximizes energy output.
Durability & Strength: The interconnected structure provides exceptional stability, making it ideal for high-wind and extreme weather conditions.
Flat Roof Matrix ELITE: Secure & Efficient Solar Mounting for Flat Roofs
SOEASY’s Flat Roof Matrix ELITE is a high-performance ballasted mounting system, specially designed for flat roofs with strict waterproofing requirements and limited load-bearing capacity. Its aerodynamic design enhances stability, while the non-penetrating structure protects the roof from damage.
With pre-assembled brackets, installation is quick and hassle-free, reducing labor costs and improving efficiency. Constructed from durable aluminum and stainless steel, the system ensures long-term corrosion resistance and reliability in various environmental conditions.
The adjustable tilt angle maximizes solar energy capture, making it an ideal solution for commercial, industrial, and large-scale residential projects. With its lightweight yet sturdy design, the Flat Roof Matrix ELITE offers a cost-effective, efficient, and roof-friendly solar mounting solution.
