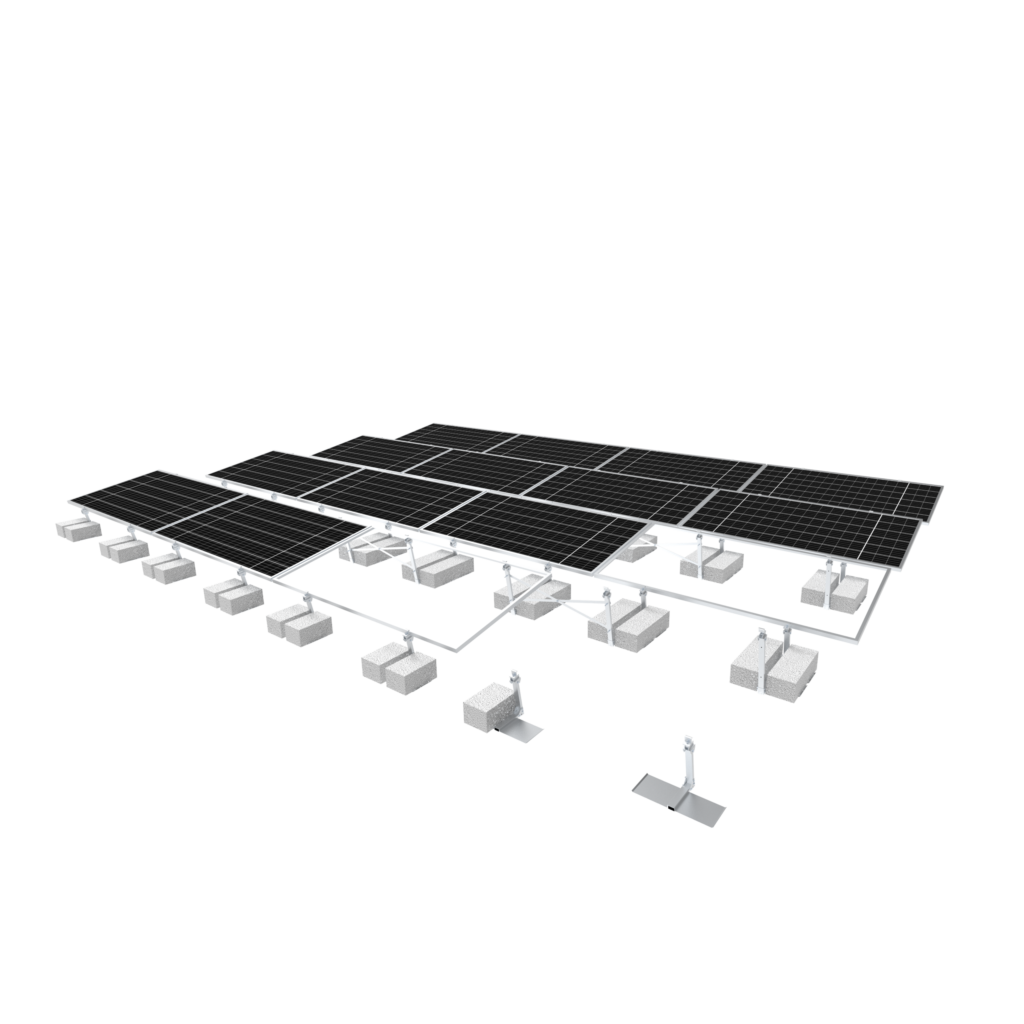

Flat Roof: Matrix ECO
The Flat Roof: Matrix ECO is an advanced ballasted solar mounting system designed for flat roof installations without roof penetration. Engineered for efficiency and stability, it features a railless design with pre-assembled components, significantly reducing installation time and labor costs.
With its optimized tilt angles, the system enhances energy generation while ensuring strong wind resistance (up to 44m/s). The high-strength aluminum and stainless steel structure ensures long-term durability and corrosion resistance, making it ideal for commercial, industrial, and residential applications.
The SOEASY flat roof ballasted solar mountis a cost-effective, reliable, and easy-to-install solution, providing maximum system performance while maintaining the integrity of flat roofs.
Features
Fully Pre-Assembled & Patented Design:
The system’s pre-assembled brackets and patented fixed components streamline installation, reducing on-site labor and construction time. This plug-and-play design ensures a hassle-free setup, allowing for rapid deployment and real-time project execution.
Customizable & Roof-Friendly Design:
The Flat Roof Matrix ECO is fully customizable to meet specific project requirements, saving valuable design and construction time. Its ballast-based fixation system uses concrete or other weights to secure the front and rear brackets, eliminating the need for roof penetrations. This permeable fixing method preserves the roof’s original waterproof structure, ensuring long-term durability and protection.
Optimized for Large Panels in Landscape Layout:
Specially designed to accommodate large solar panels in a landscape orientation, the system complies with module manufacturers’ installation guidelines. By securing panels at nearly the 1/4 point of the long side, the risk of panel deformation and sagging is significantly reduced, ensuring optimal performance and longevity.
Enhanced Stability with Integrated Structure:

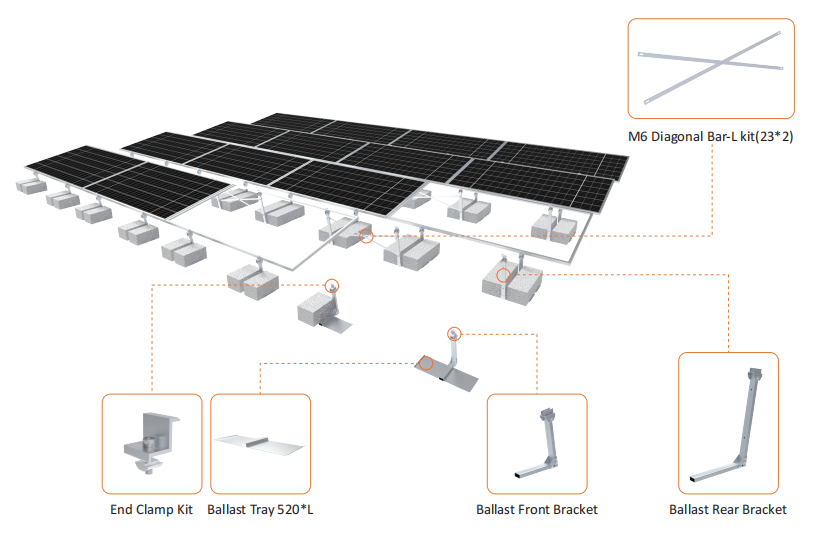

The entire layout is interconnected using leg joints and crossed diagonal bars, transforming individual panels into a unified, robust structure. This innovative design enhances wind resistance, improves overall stability, and ensures the system can withstand harsh environmental conditions.
Parameter table
Application | Flat Roof |
Component Material | AL 6005-T6/SUS304 |
Surface Treatment | Average Anodizing Coating Thickness 10μm |
Panel Type | Framed & Frameless |
Wind Load | ≤45m/s |
Snow Load | 1.5KN/m² |
Panel Orientation | Landscape |
Installation Angle | 0°~45° |
Seismic Load | Lateral Seismic Factor: Kp=1; Seismic Coefficient: Z=1; Use Coefficient: I=1 |
Standards | JIS C 8955 : 2017；AS/NZS 1170; DIN1055; ASCE/SEI 7-05; International Building Code：IBC 2009 |
Warranty | 10 Years Quality Warranty, 25 Years Life Span Warranty |
Guarantees & Service
Time & Cost Efficiency: Pre-assembled components and a simple installation process reduce labor and construction costs, while the customizable design accelerates project timelines.
Roof Protection: The non-penetrative ballast system safeguards the roof’s waterproofing, eliminating the risk of leaks or damage.
Superior Performance: Engineered for large panels, the system minimizes the risk of deformation and maximizes energy output.
Durability & Strength: The interconnected structure provides exceptional stability, making it ideal for high-wind and extreme weather conditions.
SOEASY Flat Roof Solution: Matrix ECO
The SOEASY Railless Ballast Support System is a cost-effective and highly stable solar mounting solution designed specifically for concrete flat roofs. Featuring a simple yet robust structure, this system utilizes a concrete block ballast fixing method, ensuring exceptional stability without the need for roof penetration.
One of its key advantages is its customizable ballast weight, which can be adjusted according to local wind speeds and roof conditions. This flexibility allows for optimized load distribution, making it suitable for a wide range of commercial and industrial applications.
With its railless design, the system significantly reduces material usage, simplifies installation, and lowers labor costs. Offering a durable, efficient, and adaptable solution, the SOEASY Railless Ballast Support System is an ideal choice for flat-roof solar projects requiring high performance and minimal structural impact.
