Flat Roof: Nova TRIPOD

The SOEASY Flat Roof Nova TRIPOD is a versatile and robust solar mounting solution designed specifically for commercial PV installations on flat roofs. Whether your solar panels are oriented in portrait or landscape, this innovative tripod system delivers unmatched flexibility, strength, and durability, making it the ideal choice for a wide range of commercial applications.

The Flat Roof Nova TRIPOD is more than just a mounting system—it’s a smart, adaptable solution that empowers commercial solar projects to thrive. Whether you’re working on a small-scale installation or a large commercial rooftop array, this system delivers the strength, flexibility, and reliability you need to achieve your energy goals.

Get A Quote

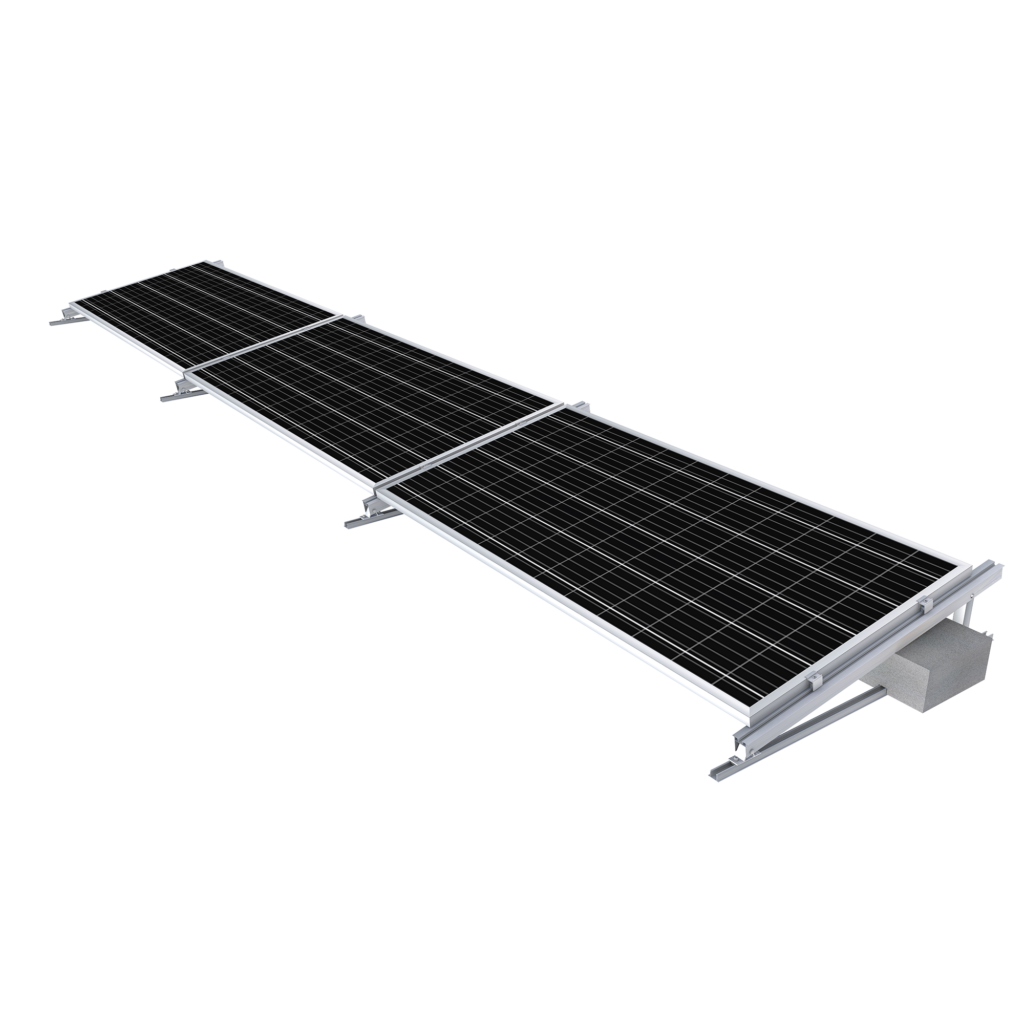

tripod solar mounting solution

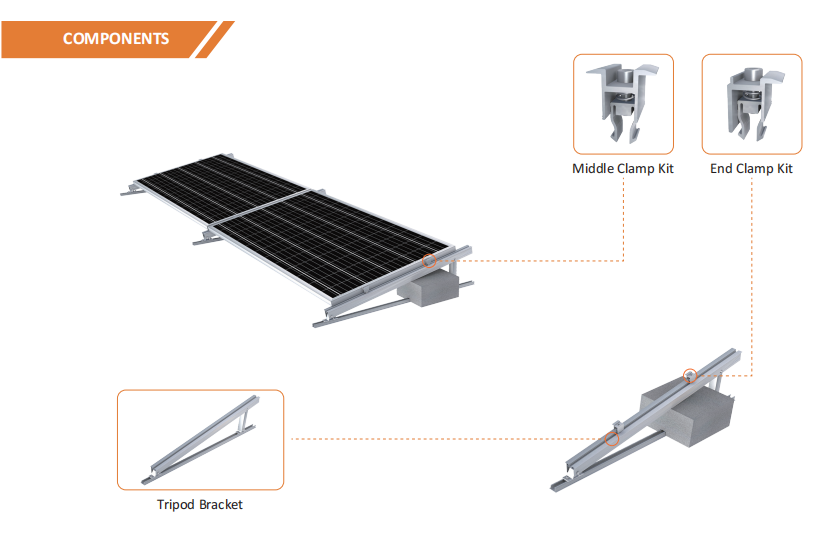

components of tripod solar mount
  1. Easy Installation: The straightforward design and lightweight aluminium construction make the Nova TRIPOD quick and easy to install, reducing labor costs and project timelines.
  2. Optimized Energy Output: With adjustable tilt angles and dual orientation support, this system ensures your solar panels are positioned to capture the maximum amount of sunlight.
  3. Versatility: Suitable for a wide range of commercial flat roof applications, the Nova TRIPOD adapts to your specific project needs with ease.
  4. Cost-Effective: By combining durability, ease of installation, and energy efficiency, the Nova TRIPOD offers an excellent return on investment.
  5. Dual Orientation Support: The Nova TRIPOD is designed to accommodate both portrait and landscape panel orientations, providing maximum flexibility for your installation layout.
  6. Adjustable Tilt Angles: The system offers fixed and adjustable tilt angles (15-30 degrees), allowing you to optimize solar panel positioning for maximum energy efficiency.
  7. Wide Compatibility: Compatible with a variety of purlin distances, the Nova TRIPOD seamlessly integrates with different roof structures, ensuring a hassle-free installation process.
  8. Triangular Design: The triangular base provides a simple yet incredibly strong and sturdy foundation, enhancing the system’s stability and load-bearing capacity.
  9. Corrosion-Resistant Material: Constructed from high-quality aluminium, the Nova TRIPOD is built to withstand even the most corrosive environments, ensuring long-lasting performance and minimal maintenance.

Application

Metal/Flat Roof

Material

AL6005-T6/SUS304

Surface Treatment

Average Anodizing Coating Thickness 10um

Panel Type

Framed & Frameless

Wind Load

≤45m/s

Snow Load

<1.5KN/m²

Panel Orientation

Landscape/Portrait

Tilt Angle

0°~45°

Seismic Load

Lateral Seismic Factor: Kp=1;Seismic Coeffcient:2=1;Use coeffcient:l=1

Standards

J5 C 8955 : 2017; AS/NZ5 1170;DIN1055: ASCE/SEI 7-05;International Building Code : 1BC 2009

Warranty

10 Years Quality Warranty,25 Years Life Span Warranty

  • Product Guarantee: The SOEASY Nova TRIPOD rooftop solar mount is manufactured using high-quality materials to ensure long-term durability and resistance to harsh weather conditions. We offer a 10 years warranty, covering material defects and manufacturing quality.
  • Technical Support: Our team provides comprehensive pre-sales consultation, installation guidance, and post-sales assistance to ensure smooth project execution.
  • Customization Options: We understand that every project is unique. Our engineers can assist with customized designs tailored to specific flat roof conditions.
  • Global Logistics & Fast Delivery: With a well-established supply chain, we ensure on-time delivery to keep your solar projects on schedule.
  • Ongoing Customer Service: Our support doesn’t end after delivery. We offer regular follow-ups and technical support to help maximize system performance.

Smart & Versatile Rooftop Mounting for Commercial Solar

SOEASY’s Flat Roof Nova TRIPOD is an ideal solution for commercial flat-roof solar installations, offering exceptional strength, flexibility, and durability. Designed for both portrait and landscape panel orientations, this tripod system adapts seamlessly to various project needs, ensuring maximum energy efficiency and space utilization.

Built to withstand diverse environmental conditions, the robust structure guarantees long-term stability while enabling quick and efficient installation. Whether for small-scale setups or large commercial solar arrays, Nova TRIPOD provides a reliable and cost-effective foundation for achieving sustainable energy goals.

Empower your commercial solar projects with a smart, adaptable mounting system that optimizes performance and simplifies installation.

SOEASY tripod roof mounting system
VIEW MORE

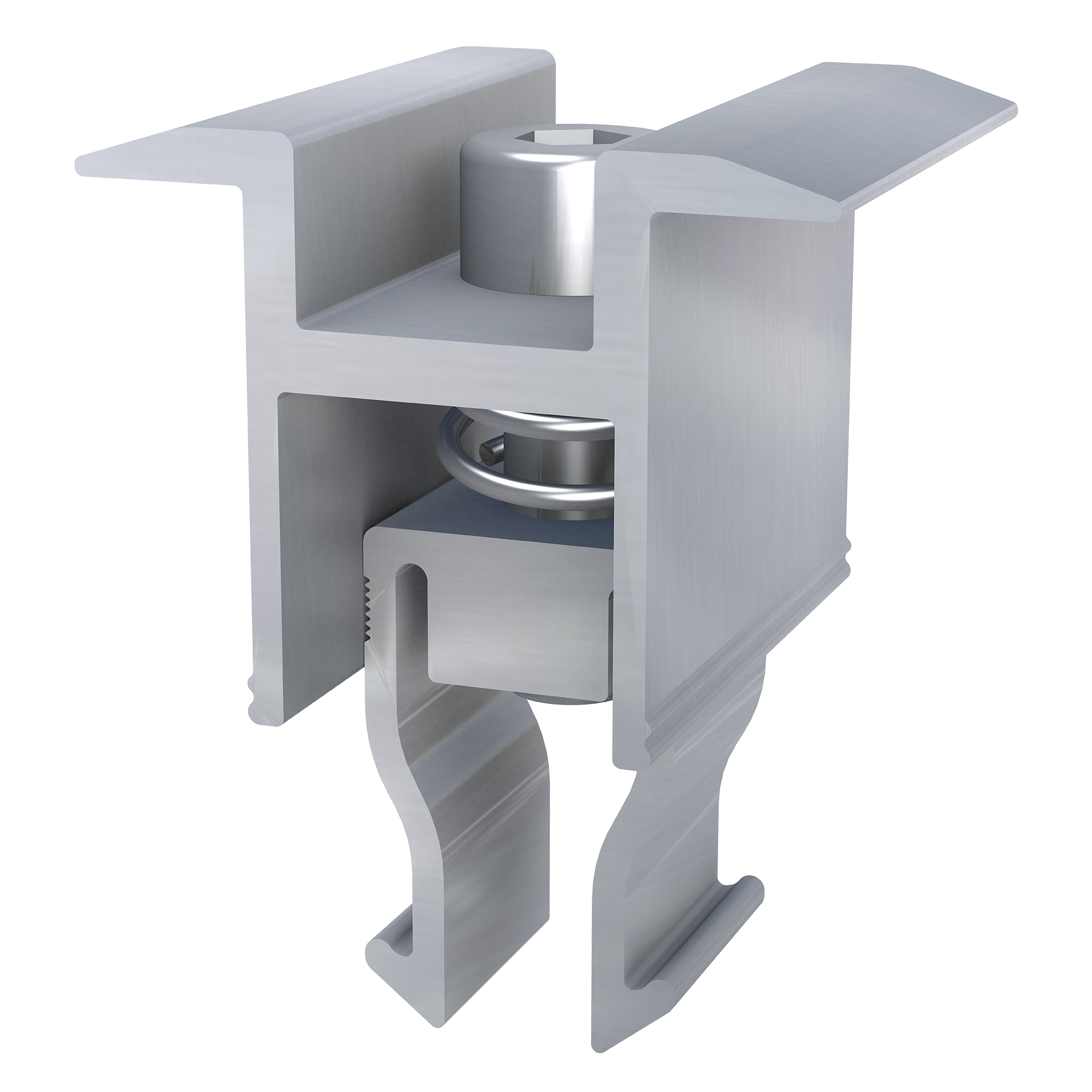

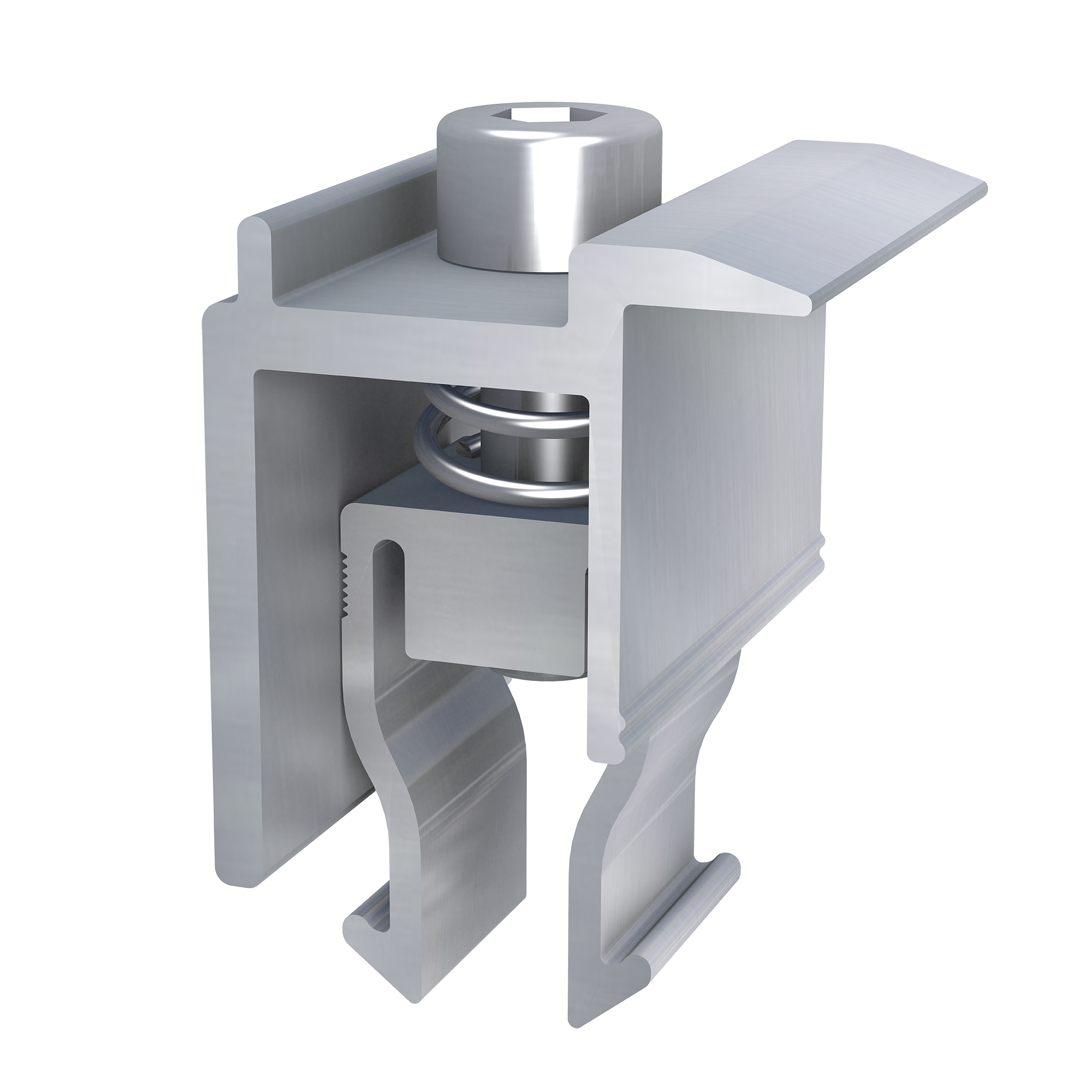

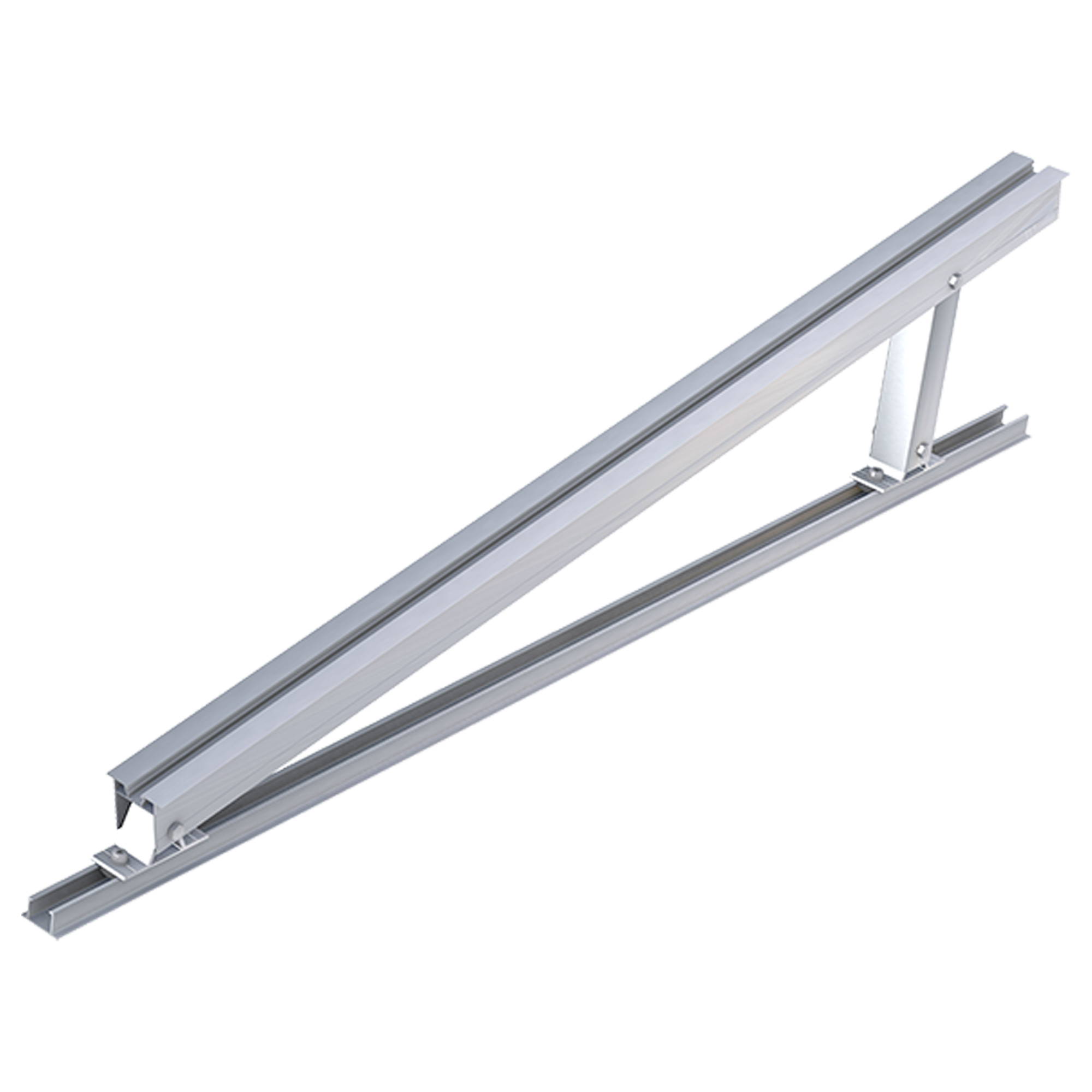

Components
