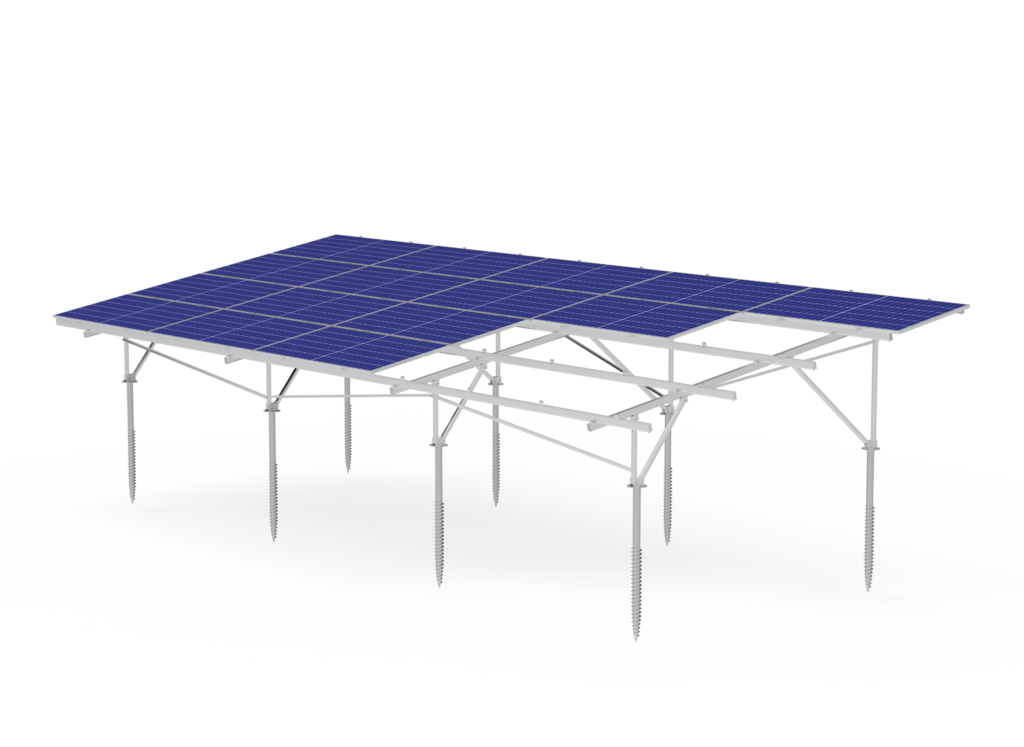

Aluminum: Terra AL

The Aluminum Terra AL by SOEASY is a premium, highly pre-assembled ground-mounted solar mounting system tailored for large-scale commercial and utility installations. Constructed with anodized aluminum alloy, it combines lightweight durability, superior corrosion resistance, and structural strength to ensure long-term reliability. The modular, pre-assembled design streamlines the installation process, significantly reducing labor time and project costs. Designed for efficiency, longevity, and adaptability, the Aluminum Terra AL is the perfect solution for developers seeking a high-performance, low-maintenance solar mounting system.

Get A Quote
  • Superior Corrosion Resistance: The anodized aluminum structure ensures excellent resistance to oxidation, humidity, and harsh environmental conditions, making it ideal for coastal and high-humidity regions.
  • Lightweight & High Strength: Aluminum’s low density and high strength-to-weight ratio allow for easier handling, reduced transportation costs, and faster installation while maintaining structural stability.
  • Pre-Assembled for Quick Installation: With factory pre-assembled components, the Terra AL system minimizes on-site assembly time, accelerating deployment and reducing labor costs.
  • Long-Term Durability & Low Maintenance: Engineered for a 25+ year lifespan, the system requires minimal maintenance, ensuring a low total cost of ownership.
  • Sustainable & Recyclable: Made from 100% recyclable aluminum, the Terra AL supports sustainable energy solutions with an eco-friendly approach.
  • Flexible & High Compatibility: Designed to accommodate various module sizes and layouts, making it adaptable for different site conditions and installation requirements.

Material

Main body:Aluminium (6005 T5)

Small parts:Stainless steel

Orientation

Landscape/Portrait

Recommended

Ground Clearance

0.4m-1.5m

Inclination

0-45° degrees

Wind Speed Max

<60m/s

Snow Load Max

<1.5KN/㎡

Applicable

Structure Type

A structure type,N structure type,W structure type

Foundation

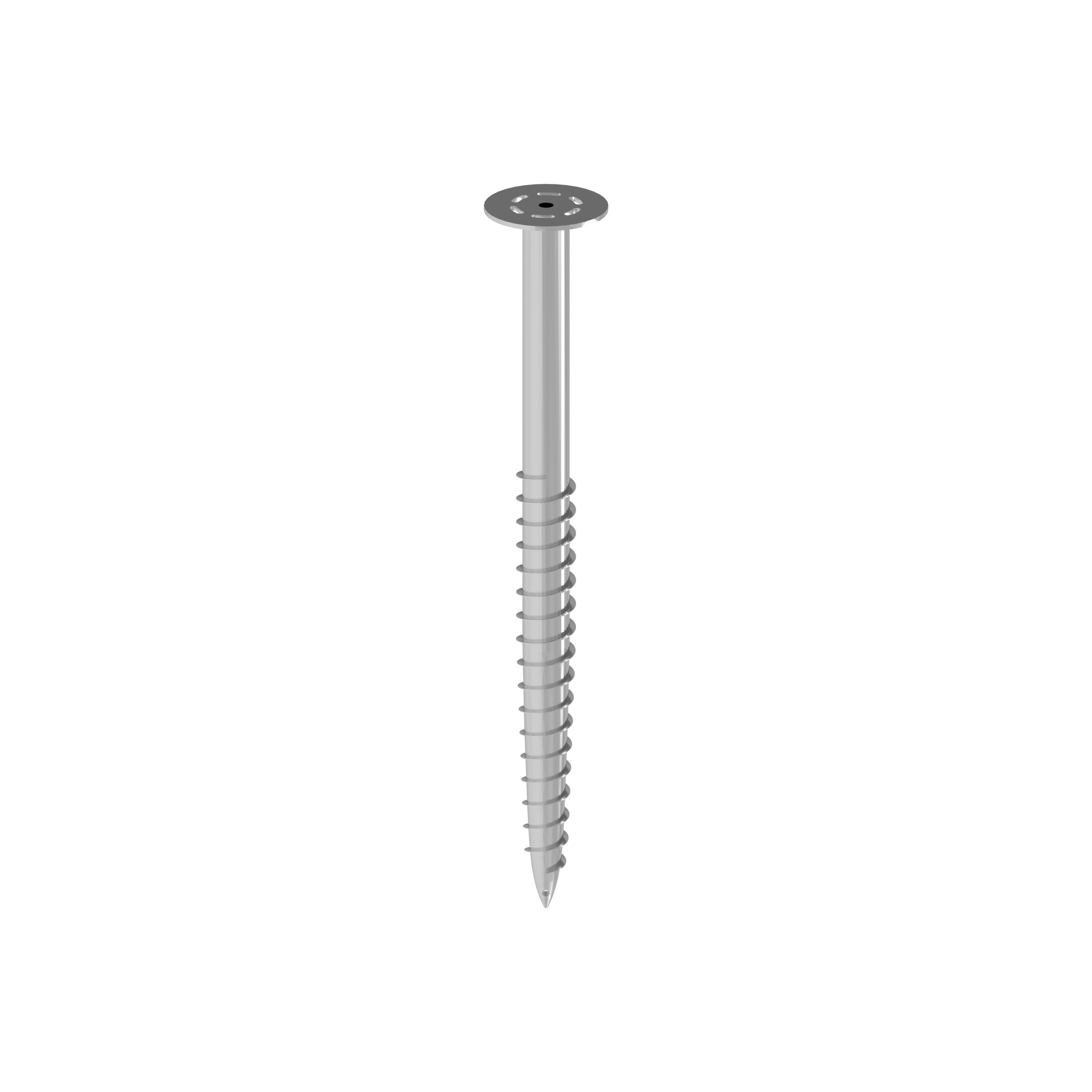

Ground screw

Embedded ground screw

Concrete foundation

Structure Standards

JS 8955:2017;AS-NZS 1170；DIN 1055；ASCE 7-05

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Aluminum Ground Mount System

SOEASY aluminum solar racking, with professional and reasonable structural design, has strong mechanical properties such as wind pressure resistance, snow pressure resistance, vibration resistance, corrosion resistance, etc., which ensures normal operation in various harsh environments such as wind, sand, rain, snow, earthquake, etc., and requires a service life of more than 25 years.

Click here
VIEW MORE

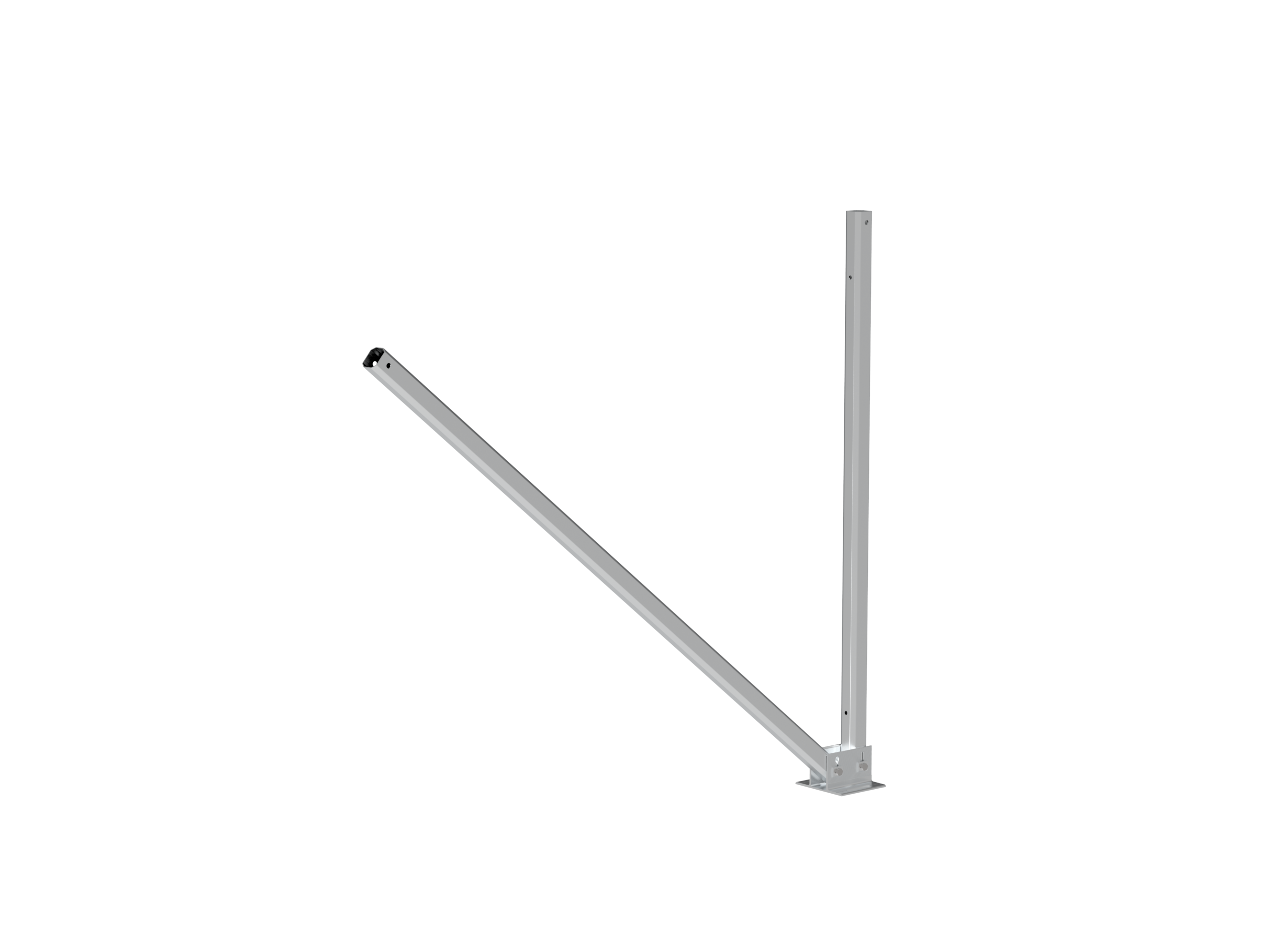

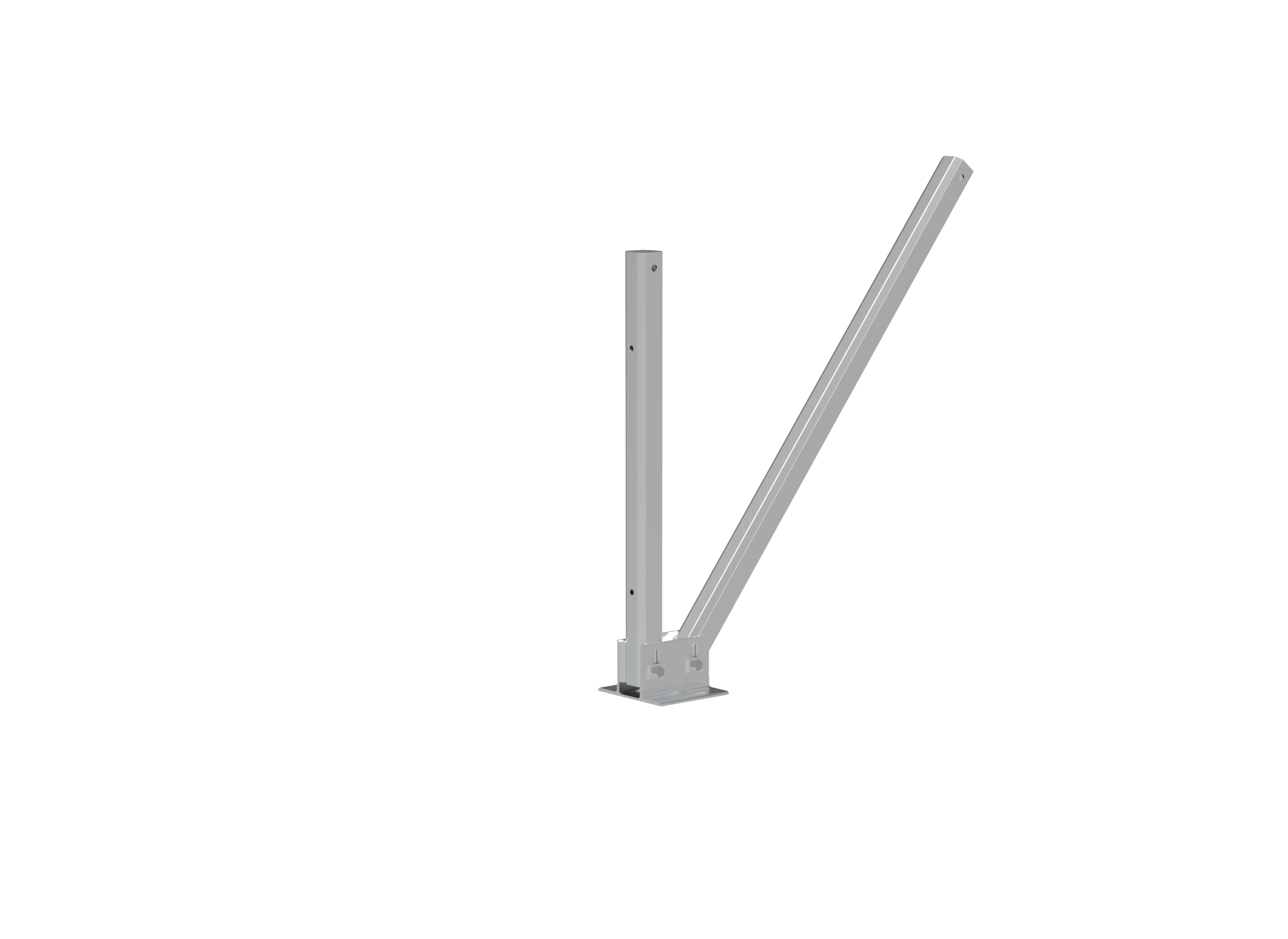

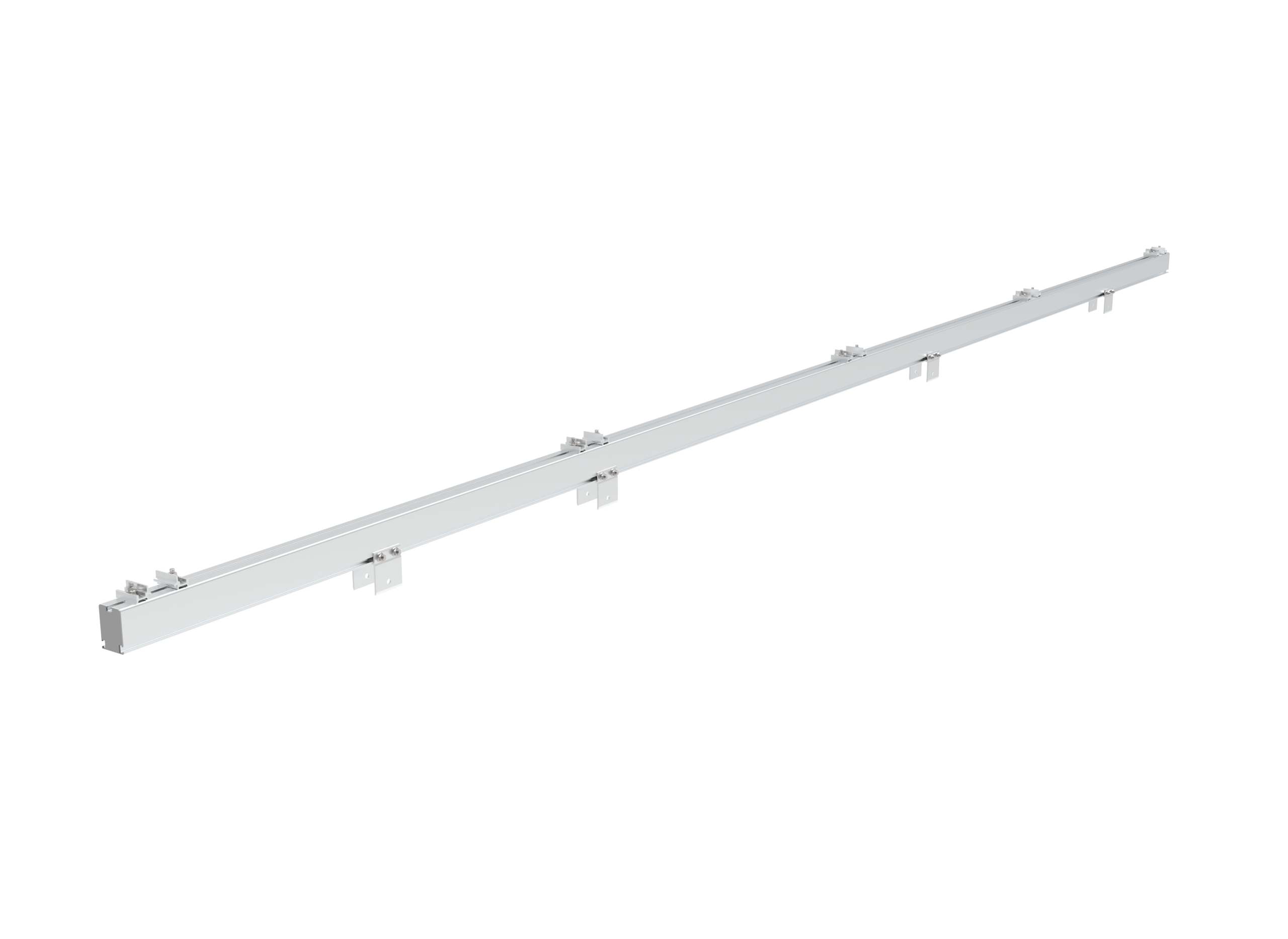

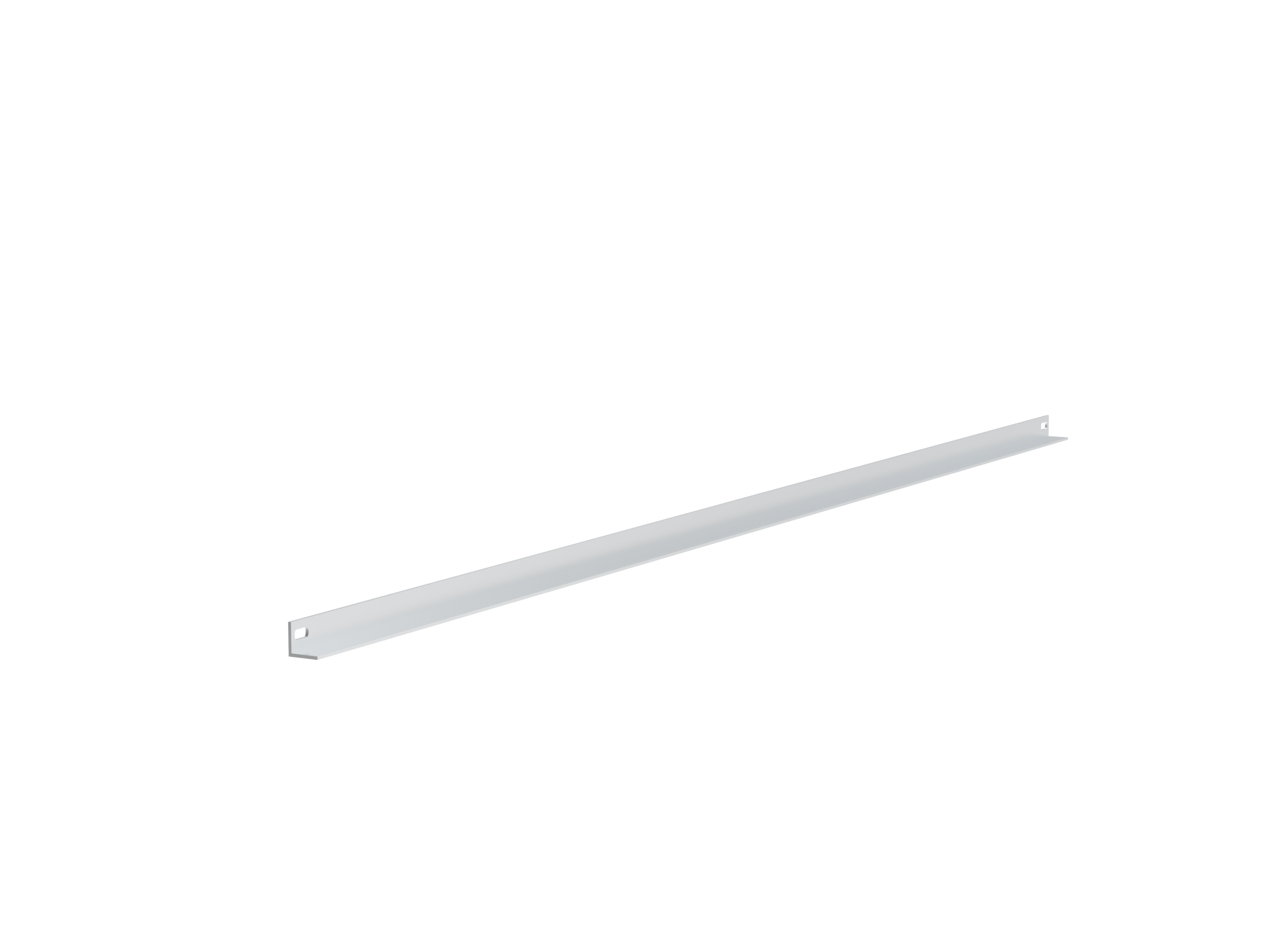

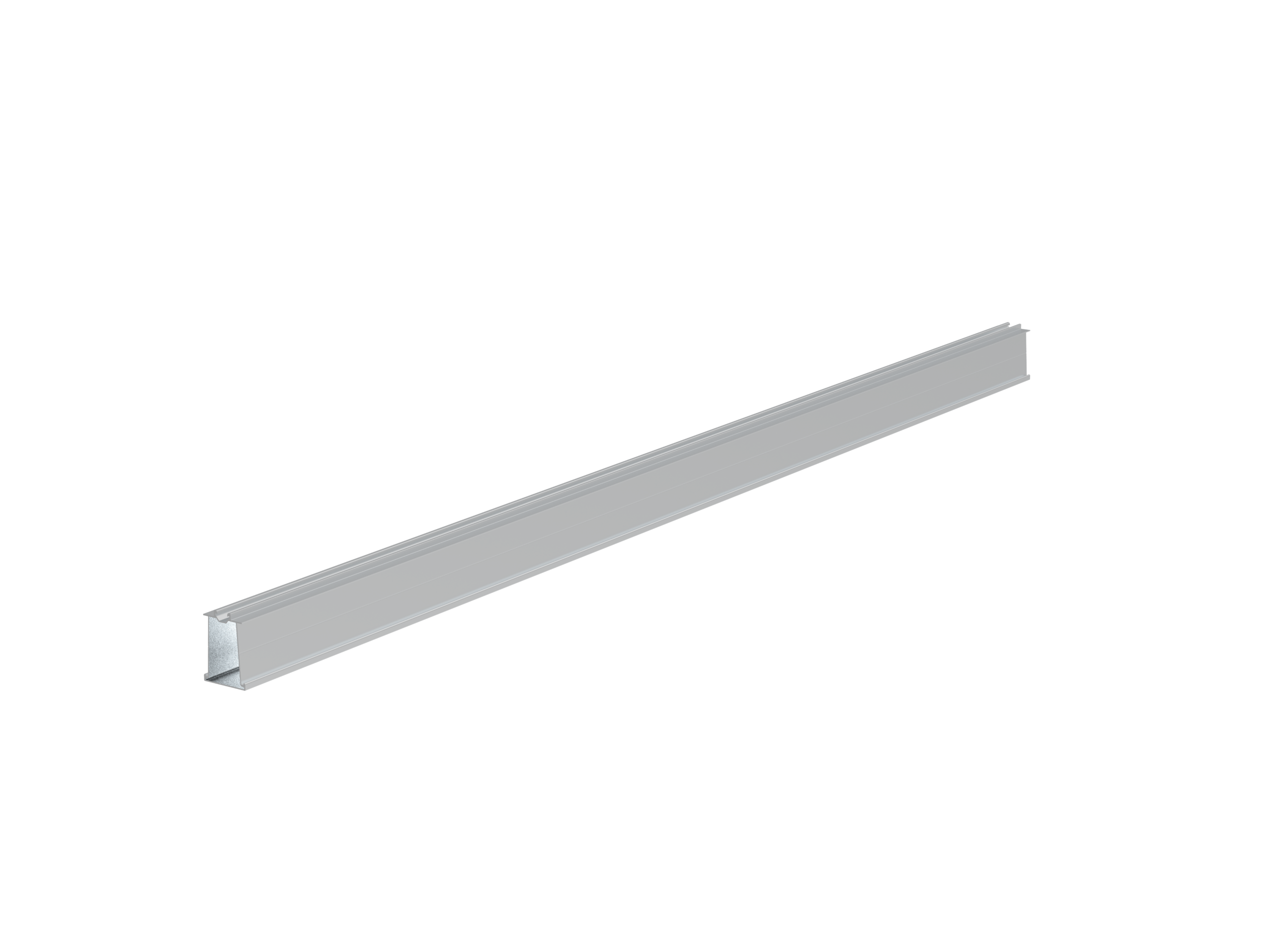

Components
