Tilted Triangular Mounting System for Enhanced Efficiency and Stability

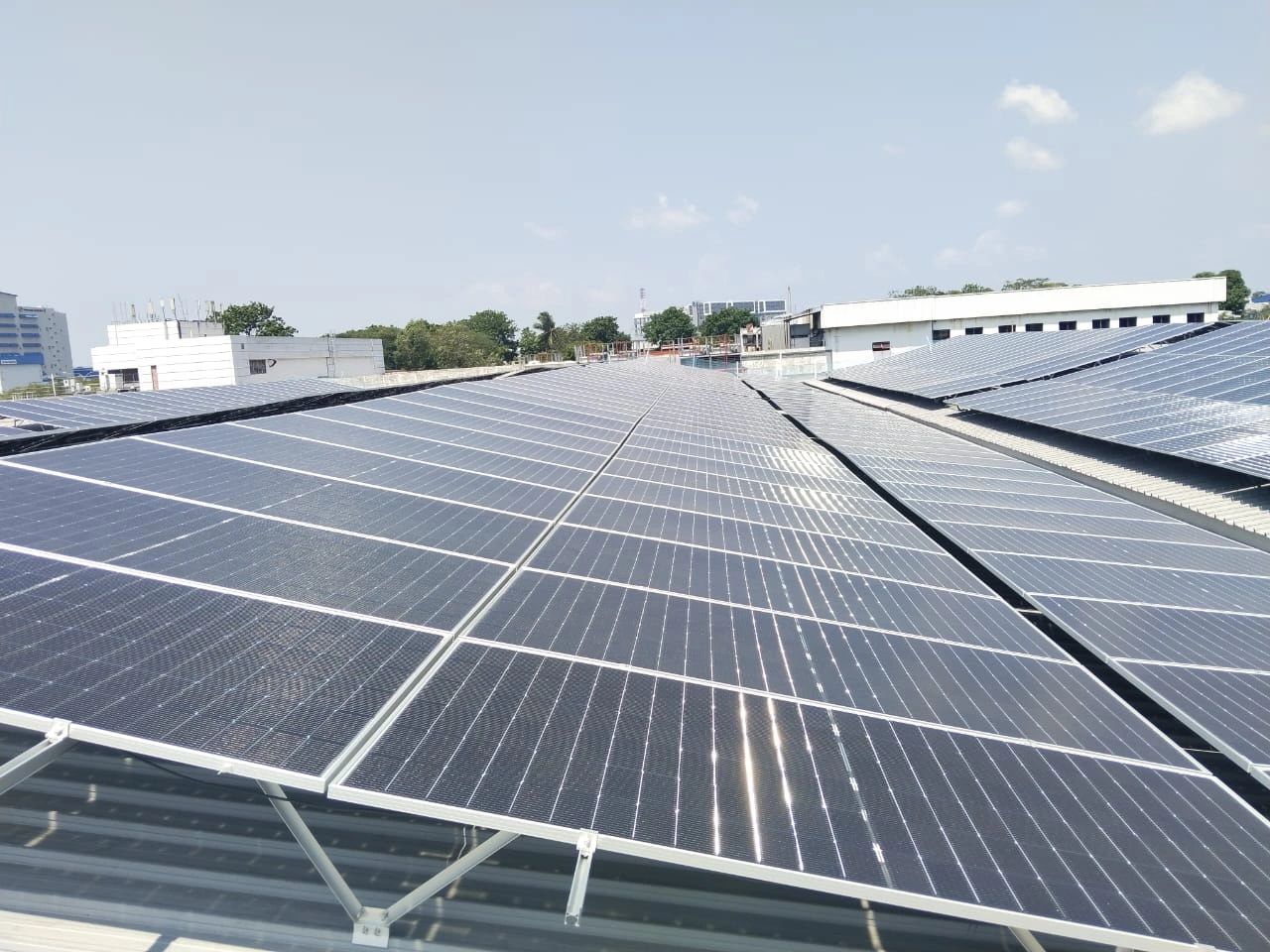

To support Singapore’s green energy transition, SOEASY successfully delivered a 674kW rooftop solar project installed on trapezoidal metal sheet roofing. A customized tilted triangular mounting system was adopted, offering optimal panel angle and structural strength while ensuring effective waterproof performance.

Project Highlights:

• Roof Type: Trapezoidal corrugated metal sheet roof
• Fixing Method: Expansion bolts anchored directly to the purlins, sealed with waterproof pads and structural adhesive
• Mounting Structure: Aluminum vertical support legs with diagonal bracing for enhanced wind resistance
• Rail System: Standard aluminum rails compatible with framed PV modules
• Module Orientation: Portrait

Technical Advantages:

• Optimized Tilt Angle: Designed to maximize energy yield under Singapore’s solar radiation conditions
• Flexible Roof Adaptation: Suitable for various trapezoidal roof profiles
• Quick & Secure Installation: Modular design enables fast on-site assembly and structural reliability
• Waterproof Solution: Integrated sealing methods prevent leaks and maintain long-term durability

Now in full operation, the system significantly reduces energy costs while promoting a sustainable energy future. Backed by SOEASY’s rich experience in rooftop solar projects and versatile mounting solutions, the project has been highly recognized by the client.
